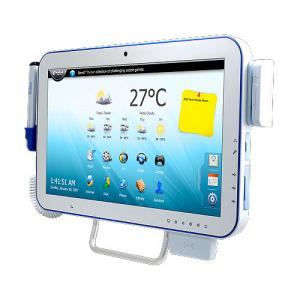

17.3" Fanless Medical FHD Touch Panel PC, 5 wires resistive touch, Intel Core i7-2610UE, Up to 4GB DDR3 RAM, 1x2.5" Drive Bay, HDMI, DP, 4xUSB 2.0, 1xLAN, 2x mini PCIe slot, MSR, SCR, RFID, Barcode Scanner, Handset, medical power adapter 19V
AID-173SHRJ01-S01R
Avalue
SKU: 56514500
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Wall
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
17.3 "
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Core i7-2610UE
Chipset
Chipset
Intel QM67
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
2 GB
Maximum Memory
4 GB
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB 2.0
4
Audio
Audio Controller
Realtek ALC892
Extension Slots
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 4xUSB, Mic In, Line Out, Display Port
Software
Operating System Compatibility
Windows XP, Windows 7, Windows 8
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
7.3 kg
Gross Weight
9 kg
