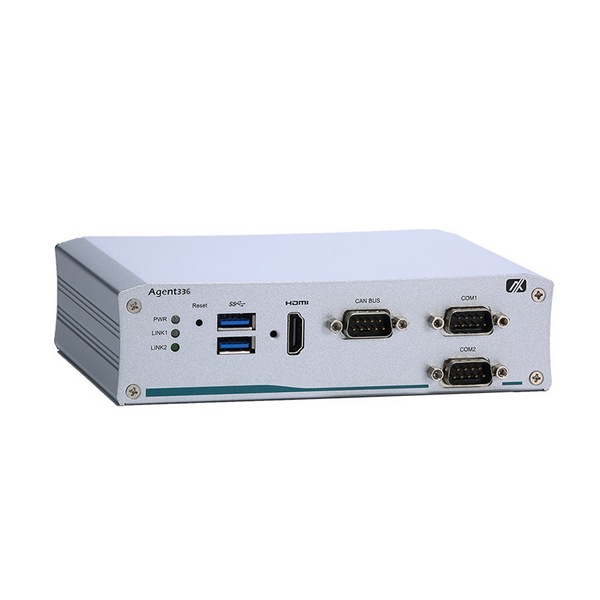

Agent336-QUAD-W/CAN BUS-YOCTO

Agent336-QUAD-W/CAN BUS-YOCTO

AXIOMTEK
SKU: 08458400
Fanless Railway grade embedded system with NXP i.MX 8M Arm Cortex-A53 QuadLite 1.3GHz, 2GB LPDDR4, 8GB eMMC, HDMI, 1xGbE LAN/PoE, 2xCOM, 2xUSB 3.0, CAN, DIO, MicroSD, 2xPCIe Mini, 9...36VDC-in, ACC ignition
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
1.3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
4
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, HDMI, RJ45 Ethernet, 2xUSB, DC Input, 8-pin screw terminals (DO)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
163.8 mm
Height
44 mm
Depth
118 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE
Vehicle
E-Mark
Dimensions
Net Weight
1.5 kg
Gross Weight
2 kg
