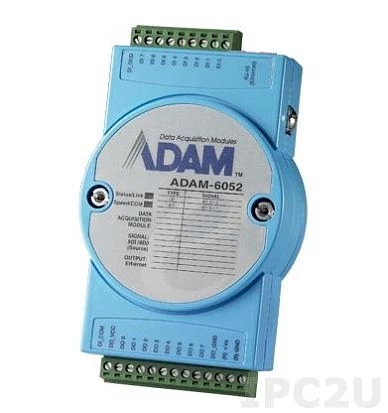

ADAM-6052-D
Advantech
SKU: 07732700
CIRCUIT MODULE, 16-Channel Source Type Digital I/O Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~3 V
Level of Logic "1"
10~30 V
Sink/Source
Sink, Dry: Source
Counter
3KHz
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Source
Output voltage
10~35 V
Max. load current
1000 mA
Channels
8
Output frequency range
0~5 kHz
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
70 mm
Depth
27 mm
Height
122 mm
Operating Conditions
Operating Temperature
-40..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.22 kg
