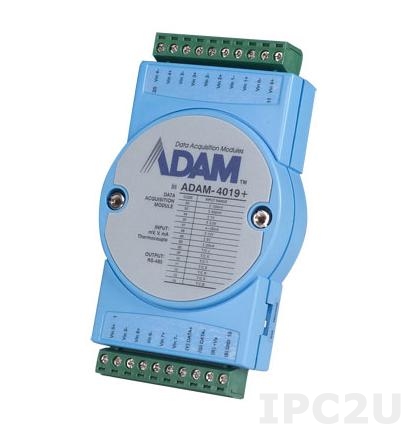

ADAM-4019+-AE

ADAM-4019+-AE

Advantech
SKU: 06606900
8-ch Universal Analog Input Module with Modbus
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Interfaces
RS-485
1
Additional Functions
Watchdog timer type
Hardware
Supported Protocols
Industrial Protocols
Modbus RTU slave, Advantech slave
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Voltage range
+/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
8
Thermocouple
J: 0...+750 °С, T: -100...+400°C, K: 0...+1200°C, R: +500...+1750°C, E: 0...+1000°C, S: +500...+1750°C, B: +500...+1800°C
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
70 mm
Depth
30 mm
Height
112 mm
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions
Net Weight
0.22 kg
Gross Weight
0.22 kg
