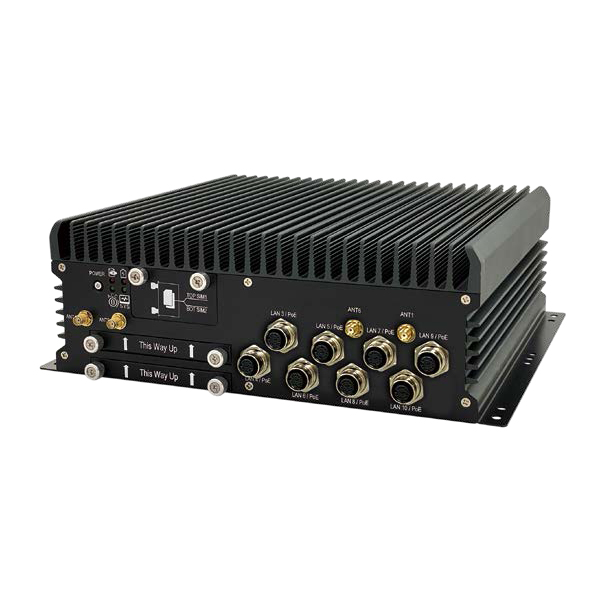

ABOX-5210-M12X-Serie
SINTRONES
SKU: 57349700
In-Vehicle Fanless Computer, Support Intel Core i7/i5/i3 10th gen. CPUs, up to 64GB DDR4 SO-DIMM RAM, Q470E/W480E Chipset, 2x2.5" Drive Bays support RAID 0/1/5, 3xDP, 2xGbE RJ45 + 8xGbE M12X, 3xCOM, 4xUSB 3.2, +9..+48V DC-in, -40..+70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
CPU
СPU Generation/Family
Comet Lake
Socket
LGA1200
CPU Support Type
Core i3, Core i5, Core i7, Xeon
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics 630
Ethernet
Controller Type
Intel i210-AT, Intel i219-LM
10/100/1000 Mbit/s
10
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
12
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
4
M.2
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, 8xM12, DC input (terminal block), DB9 GPIO, 3xDisplay Port
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
260 mm
Height
250 mm
Depth
95 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
2.5G at 5~500Hz, 1hr/axis with SSD
Shock
Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Rolling Stock
EN 50155
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5.3 kg
Gross Weight
6.8 kg
