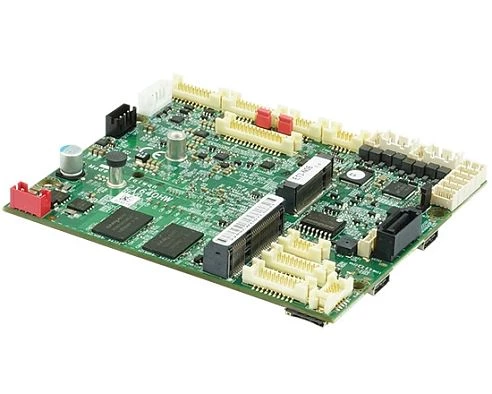

2I640HW-E13-N08 (2LAN)
LEX COMPUTECH
SKU: 09830900
2.5" Motherboard with Intel Atom x6413E, 8GB LPDDR4, HDMI, LVDS, eDP, 2xGbE LAN, 4xCOM, 1xUSB 3.0, 5xUSB 2.0, 1xMiniPCIe, 1xM.2, 1xNanoSIM, SMBus, Audio, DIO, 9-36VDC, w/power cable
Price on request
Available
Available
System Architecture
Form Factor
2.5"
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
8 GB
Assembly
Fixed on Board
Ethernet
Controller Type
Intel i225IT
Total Ethernet
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB v3.x
1
Drive interfaces
M.2
1
Extension Slots
Total
2
SIM Card slots
Nano SIM
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Ubuntu, Fedora, Windows 10, CentOS Linux
Dimensions and weight
Width
102 mm
Length
88 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
