2I110AW-EI3
LEX COMPUTECH
SKU: 09692300

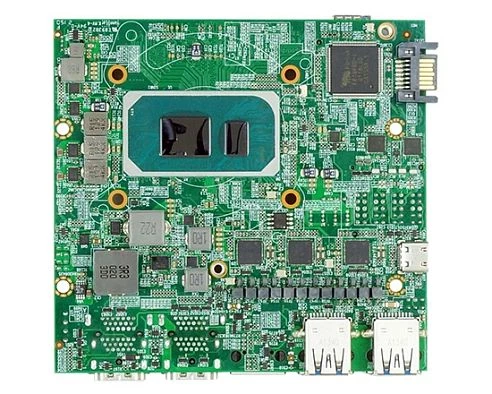

2.5" Motherboard with Intel Core i3-1115GRE, DDR4, 4xHDMI, 3xGbE LAN, 2xCOM, 2xUSB 3.0, 4xUSB 2.0, SMBus, 4DI/4DO, M.2 B-key, M.2 M-key, 9-36VDC-in
Price on request
Available on order
Available on order
System Architecture
Form Factor
2.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i3-1115GRE
Max CPU frequency
3.9 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
4xHDMI
Ethernet
Controller Type
Intel i225IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
SIM Card slots
Nano SIM
M.2
2
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
3xRJ45, 2xUSB, 4xHDMI
Software
Operating System Compatibility
Ubuntu, Fedora, Windows IoT Enterprise 10
Dimensions and weight
Width
108 mm
Length
102 mm
Operating Conditions
Operating Temperature
-40..70 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
