Nexcom Embedded Touchscreen Computers: Powering Smart Solutions Across Industries
Nexcom’s Embedded Touchscreen Computers are engineered to deliver robust performance in diverse environments, combining sleek design with advanced functionality. These systems are ideal for applications requiring reliable human-machine interfaces (HMIs), such as interactive kiosks, digital signage, industrial automation, and self-service terminals. Providing tailored solutions for industries demanding reliability, adaptability, and user-friendly interfaces. Whether deploying high-brightness displays in harsh environments (HPPC), versatile wide-screen systems (XPPC), or space-efficient open-frame panels (OPPC), these products empower businesses to enhance operational efficiency and customer engagement. With fanless operation, ultra-slim profiles, and flexible mounting options, Nexcom’s solutions excel in space-constrained settings while ensuring durability and energy efficiency. By leveraging cutting-edge technology and functional designs, Nexcom continues to drive innovation in the embedded systems market.
Nexcom HPPC Series: High Brightness Touchscreen Computers
The HPPC Series is designed for environments demanding superior display clarity. Equipped with Intel Atom® processors, these systems feature high-brightness screens (up to 1000 nits), making them visible even under direct sunlight. They are ideal for outdoor зapplications like transportation hubs, parking payment terminals, or outdoor information kiosks. The ruggedized design ensures resistance to dust, moisture, and temperature fluctuations, while capacitive touchscreens enable intuitive user interactions.
Featured Products:- Nexcom - HPPC 15-10X7211
A 15-inch high-brightness panel PC with Intel Atom® processing power, optimized for outdoor digital signage and self-service applications.
15" High Brightness Panel PC, 1024x768, 1800cd/m2, PCAP Touch, Optical Bonding, Intel Atom X7211RE 3.2GHz CPU, Up to 32GB DDR4 RAM, HDMI, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xCOM, Audio, 1xMiniPCIe, 12-24VDC-in
Nexcom XPPC Series: Wide Touchscreen Computers
The XPPC Series offers versatile configurations to meet varying performance needs, delivering solutions with wide aspect ratio like 16:9 or 16:10. Products in this series could be divided into two subgroups: < /p>
1. XPPC with Intel® Core™ Processors
Targeted at high-performance applications, these models support multitasking and complex computations. Powered by Core i3/i5 CPUs they could be utilized as medical terminals, or control panels in smart factories, they combine wide-screen displays (from 10" up to 24") with responsive projective capacitive touch technology.
Featured Products:- Nexcom - XPPC 10-10N97
A compact 10-inch panel PC with Intel® Core™ processors, ideal for interactive retail displays.
10.1" Fanless Panel PC, PCAP Touch, Optical Bonding, Intel N97 CPU, Up to 16GB DDR4 RAM, HDMI, 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 1xCOM, 1xM.2 2242 Key-M, 1xMiniPCIe, 12VDC-in with 60W Power Adapter
- Nexcom - XPPC 16-10N97
A 15.6-inch model offering enhanced processing for industrial automation.
15.6" Fanless Panel PC, PCAP Touch, Optical Bonding, Intel N97 CPU, Up to 16GB DDR4 RAM, HDMI, 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 2xCOM, 1xM.2 2242 Key-M, 1xMiniPCIe, 12VDC-in with 65W Power Adapter
- Nexcom - XPPC 24-200A
A 23.8-inch large-format touchscreen for command centers and public information systems.
23.8" Fanless Panel PC, PCAP Touch, Optical Bonding, Intel Core i5-1145G7E/i3-1115G4E CPU, Up to 32GB DDR4 RAM, DP++, HDMI, 2xGbE LAN, 4xUSB 3.0, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 12VDC-in
2. XPPC with Intel® Celeron® Processors
These cost-effective models balance performance and affordability. Powered by Celeron/N-Series CPUs they could be utilized as entry-level POS systems, vending machines, or lightweight HMIs. Their fanless design ensures silent operation in noise-sensitive environments.
Featured Products:- Nexcom - XPPC 10-100
A 10.1-inch touchscreen PC with Celeron® processing, suited for kiosks and hospitality interfaces.
10.1" Fanless Panel PC, PCAP Touch, Optical Bonding, Intel Celeron J3455 CPU, Up to 8GB DDR3L RAM, HDMI, 2xGbE LAN, 2xUSB 3.0, 1xCOM, 1xM.2 2242 Key-M (SATA), 1xMiniPCIe Full-Size, Audio, 12VDC-in
- Nexcom - XPPC 16-101
A 15.6-inch model with anti-glare display for industrial settings.
15.6" Fanless Panel PC, PCAP Touch, Optical Bonding, Intel Celeron J3455 CPU, Up to 8GB DDR3L RAM, 2xHDMI, 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 1xCOM, 1xM.2 2242 Key-M (SATA), 1xMiniPCIe Full-Size, Audio, 12VDC-in
- Nexcom - XPPC 22-100A
A 21.5-inch panel PC optimized for interactive advertising and wayfinding.
21.5" Fanless Panel PC, PCAP Touch, Air Bonding, Intel Celeron J3455 CPU, Up to 8GB DDR3L RAM, HDMI, 2xGbE LAN, 2xUSB 3.0, 1xCOM, 1xM.2 2242 Key-M (SATA), 1xMiniPCIe Full-Size, Audio, 12VDC-in

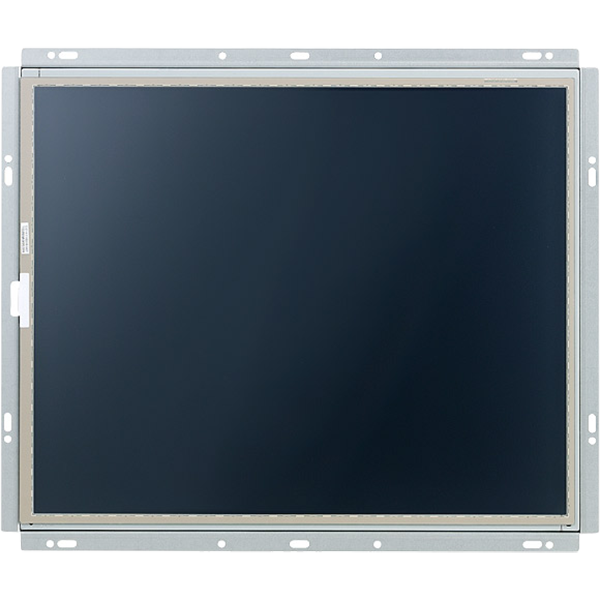

Nexcom OPPC Series: 4:3 Open Frame Panel PCs
The OPPC Series features open frame design and classic 4:3 aspect ratio, catering to legacy systems or applications requiring vertical screen orientation. With ultra-slim bezels and multiple mounting options, these panel PCs integrate seamlessly into custom enclosures. They are widely used in ATMs, ticketing machines, and medical equipment, offering scalability with Intel J1900 processors and optional sunlight-readable displays.
Featured Products:- Nexcom - OPPC 1240T
A 12.1-inch open frame PC with resistive touch, ideal for industrial control panels.
12.1" Open Frame Panel PC, Resistive Touch, Intel Atom E3826 CPU, 4GB DDR3L RAM, VGA, 2xGbE LAN, 2xCOM, 1xUSB 3.0, 2xUSB 2.0, 1xPS/2, CFast, 1x2.5" Bay, 2xMiniPCIe, Audio, 12-30V DC-In
- Nexcom - OPPC 1540TSeries
A 15-inch open frame touch panel, ideal for use in ATMs or ticketing machines.
15" Open Frame Panel PC, Resistive Touch, Intel Atom E3826 CPU, 4GB DDR3L RAM, VGA, 2xGbE LAN, 2xCOM, 1xUSB 3.0, 2xUSB 2.0, 1xPS/2, CFast, 1x2.5" Bay, 2xMiniPCIe, Audio, 12-30V DC-In
- Nexcom - OPPC 1940TSeries
A 19-inch touchscreen solution designed for robust 24/7 operation in transportation hubs
19" Open Frame Panel PC, Resistive Touch, Intel Atom E3826 CPU, 4GB DDR3L RAM, VGA, 2xGbE LAN, 2xCOM, 1xUSB 3.0, 2xUSB 2.0, 1xPS/2, CFast, 1x2.5" Bay, 2xMiniPCIe, Audio, 12-30V DC-In
