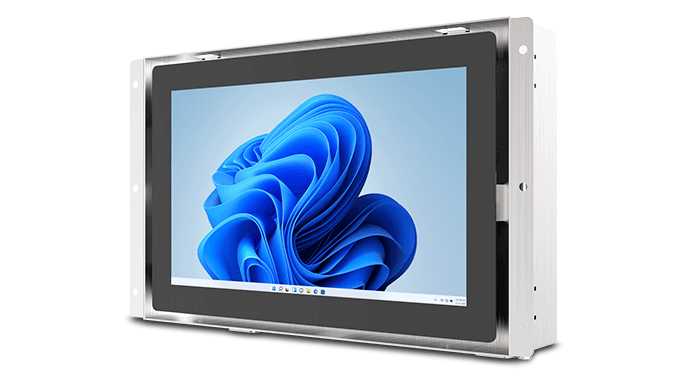

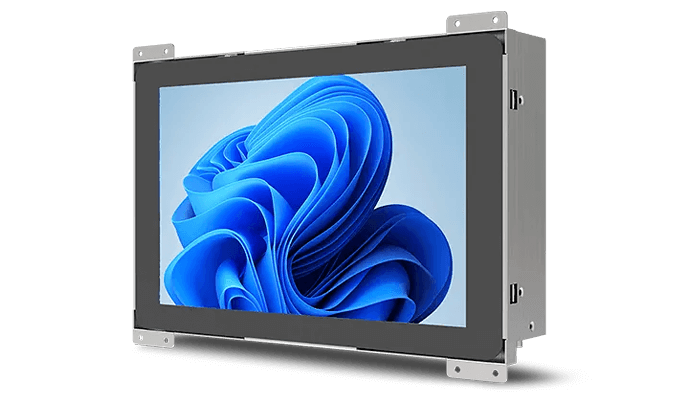

Winmate has announced the release of two new models of fanless panel computers – W10IAN3S-POA1 with a screen diagonal of 10,1” и W07IAN3S-POT1 with a 7” screen, based on the modern Intel Alder Lake-N platform and coming with the energy-efficient Intel N100 processor. The new models are designed to expand visualization and control capabilities in intelligent manufacturing systems, human-machine interfaces, and embedded controllers.
Balance of computing performance and energy efficiency
Winmate's new models feature a balanced architecture of performance and energy efficiency, making them ideal for continuous operation in industrial automation environments. Featuring the Intel Alder Lake-N N100 processor, the W07IAN3S-POT1 and W10IAN3S-POA1 panel deliver fast logic processing, data visualization, and reliable performance for human-machine interaction tasks. Both models are equipped with modern 8GB of DDR5 RAM, with a maximum supported memory capacity of 16GB. Base models come with a pre-installed 128GB M.2 NVME drive.
Technical characteristics
|
|
||
|
Screen diagonal |
10,1″ |
7″ |
|
Resolution |
1920х1200 |
1024х600 |
|
Brightness |
700 cd/m2 |
320 cd/m2 |
|
Touch screen |
Capacitive |
Capacitive |
|
CPU |
Intel N100 |
Intel N100 |
|
RAM |
1 × SO-DIMM DDR5-4800, 8GB preinstalled, support up to 16GB |
1 × SO-DIMM DDR5-4800, 8GB preinstalled, support up to 16GB |
|
Storage |
128 GB NVMe SSD M.2 2280 |
128 GB NVMe SSD M.2 2280 |
|
Network |
2×2.5GLAN |
2×2.5GLAN |
|
I/O ports |
2xUSB3.2, 1xUSB Type-C, 2xCOM |
2xUSB3.2, 1xUSB Type-C, 2xCOM |
|
Power requirements |
12V DC |
12V DC |
Application scenarios
- Automated production lines
Visualization of technological processes, equipment control, display of parameters and alarm messages - Control panels for machine tools and industrial equipment
Use as a human-machine interface (HMI) for CNC machines, packaging, assembly and processing machines - OEM and embedded solutions
Integration into control cabinets, terminals and dedicated devices thanks to the open-frame design - Smart manufacturing systems
Data collection and display, production process control, connection to MES/SCADA systems - Industrial IoT and Edge computing
Local processing of data from sensors and equipment with subsequent transmission to cloud or corporate systems - Energy and infrastructure
Monitoring and management of power supply systems, distribution nodes, and building engineering systems - Transport and logistics
Operator panels for warehouse systems, automated terminals and logistics complexes - Compact operator terminals
Workstations for operators and dispatchers in confined spaces
Reliability in real industrial conditions
Like other Winmate’s industrial solutions, W07IAN3S-POT1 and W10IAN3S-POA1 were designed to meet industrial production requirements, they offer high reliability, are ready for use in automated production lines, and ensure stable 24/7 operation even in challenging conditions. These panel computers play a key role in modern manufacturing and IoT systems, where compact and energy-efficient control devices enable process visualization, equipment monitoring, and convenient interaction between operators and automation systems.
