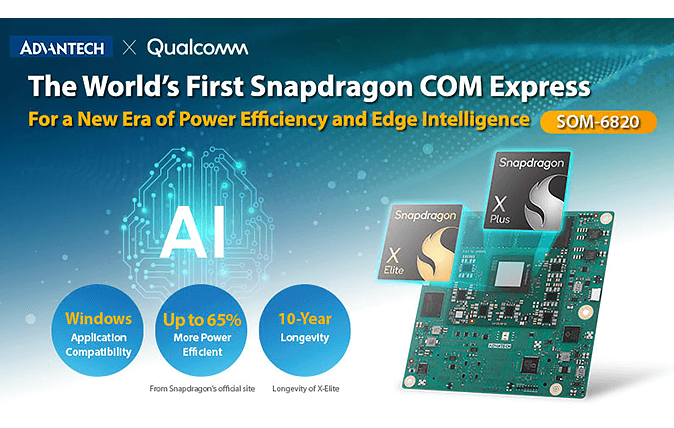

Advantech has presented a new COM Express Type 6 compact CPU board line SOM-6820, which come with the latest Qualcomm Snapdragon X-Elite processor. Thanks to this, the SOM-6820 boards deliver high performance and provide 65% greater energy efficiency while consuming several times less power than competing platforms.
The new SOM-6820 series supports up to 64GB of LPDDR5x RAM and has up to 256GB of built-in UFS storage, delivering superior data processing performance.
The SOM-6820 offers the following input/output ports: 12x USB, 1x GLAN 100 Mbit/s, GPIO, SPI, COM. In addition, 2x SATA Gen3 and up to 8 PCI Express lines are available for connecting drives.
The SOM-6820 processor boards are compact in size — just 95 x 95 mm — and can operate in a wide temperature range from -40°C to +85°C. This makes them an optimal choice for ensuring high reliability with a fanless cooling system.
|
Name |
Description |
|
CPU |
Qualcomm X-Elite Processors (X1E-00-1DE, X1E-78-100, X1P-66-100, X1P-42-100) |
|
RAM |
LPDDR5x, 64 GB max |
|
Video interfaces |
1x LVDS: 1920 x 1200 @60Hz/eDP 4096 x 2304 @60GHz DisplayPort 2.1 HBR3: 4096 x 2304 @ 60GHz |
|
I/O interfaces |
4x USB3.2 |
|
Storage |
4x SATA Gen3 |
|
Expansion slots |
4x PCIe x4 Gen4 |
|
Power requirements |
ATX: Vin, VSB; AT: Vin Supply Voltage Vin: 12V; VSB: 4.75V ~ 5.25V; RTC Battery: 2.0V ~ 3.3V |
|
Operational temperature |
-40°C…+85°C |
|
Dimensions |
95 x 95 mm |
