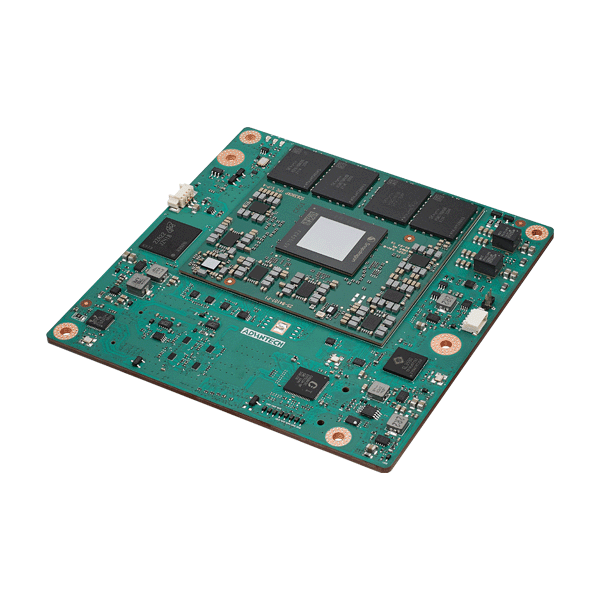

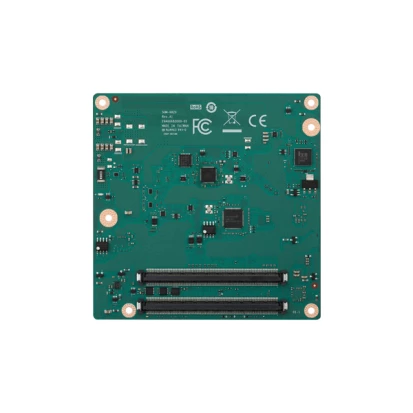

SOM-6820
Advantech
SKU: 80130200
COM-Express Type 6 Module, Qualcomm Snapdragon X-Elite Series SoC, Adreno iGPU, Up to 64GB LPDDR5x RAM, LVDS/eDP, DP, 1xGbE LAN, 4xUSB 3.2, 8xUSB 2.0, Up to 4xSATA 3.0, 8-bit GPIO, 4xPCIe x4, 4xPCIe x2, Audio, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
COM Express Compact
CPU
Processor Installed
Snapdragon X-Elite X1E-00-1DE
Socket
CPU onboard
Max CPU frequency
4.3 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Maximum Memory
64 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, eDP
Ethernet
Controller Type
Realtek RTL8153B
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
4
Extension Slots
Total
10
PCI Express x4
4
COM Express
2
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
95 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.15 kg
Gross Weight
0.3 kg
