Network security hardware has long been an integral part of the infrastructure of any modern organization. Today's realities require new approaches to building secure networks that can withstand modern threats and protect corporate data from hackers.
Nexcom continues to develop its line of network security products.
Today we will take a look at the new server platform NSA 5200
NSA 5200
Key features of the NSA 5200:
- Performance: the model is based on 14th generation Intel Core CPU, up to 128 GB of DDR5 RAM, high data exchange speed thanks to PCIe 5.0 support.
- Storage: one M.2 Key M 2280 NVMe slot is provided for data storage, as well as two additional slots for 2.5-inch SATA 3.0 SSDs (optional).
- Network: four slots for installing specialized LAN modules compatible with Gen-Z technology.
|
|
LAN Slot 1 |
LAN Slot 2 |
LAN Slot 3 |
LAN Slot 4 |
|
Connector type |
OCP |
|||
|
Signal |
PCIe 5.0 x8 |
2 x PCIe 4.0 x4 |
2 x PCIe 3.0 x4 |
|

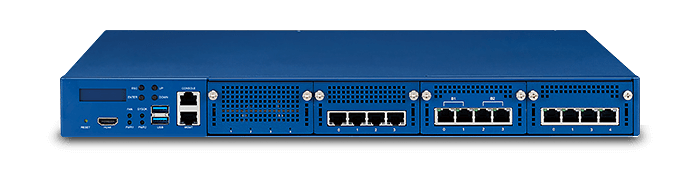

- Interfaces: LCD display, HDMI output, two USB 3.0 ports, one RJ45 console port, one RJ45 MGT port for remote control.

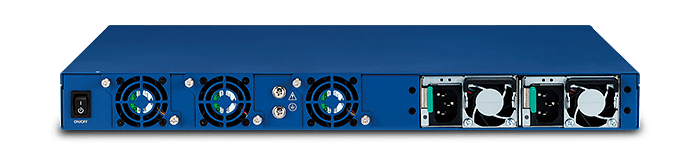

- Cooling is provided by three replaceable fans
- Power: redundant power supply supply (550W 1+1).
- Size: 438 mm (W) x 511 mm (D) x 44 mm (H)
Applications of the NSA 5200:
The NSA 5200 platform is designed for deployment as a central element of information security systems in medium and large businesses. It is used as a security gateway, a next-generation firewall (NGFW), and an intrusion detection and prevention system (IDS/IPS). The NSA 5200 is also used in data centers and corporate networks where it is necessary to make decisions on traffic filtering and network perimeter protection as quickly as possible.
As a result, the high level of integration and a rich set of features make the NSA 5200 an ideal solution for implementing high-complexity projects.
