NEXCOM has presented two models of industrial panel PCs — APPC160 C21-01 with a 15.6″ display and APPC210 C21-01 with a 21.5″ screen, designed for industrial automation, equipment control, and human-machine interface (HMI) applications. Both devices are powered by the high-performance, energy-efficient Intel Core Ultra 5 125U processor and are intended for use in edge computing within industrial environments.

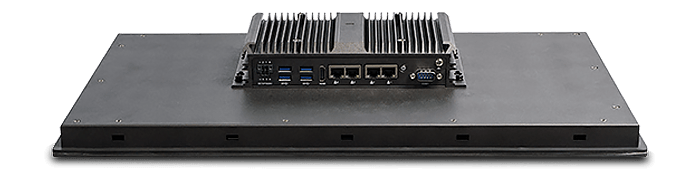

Both models feature fanless designs with a modular, slim chassis engineered for 24/7 operation. The use of the Intel Core Ultra 5 125U processor (Meteor Lake-U architecture) provides a balance between energy efficiency and computing performance, which is essential for real-time data processing and implementing intelligent functions at the network edge.

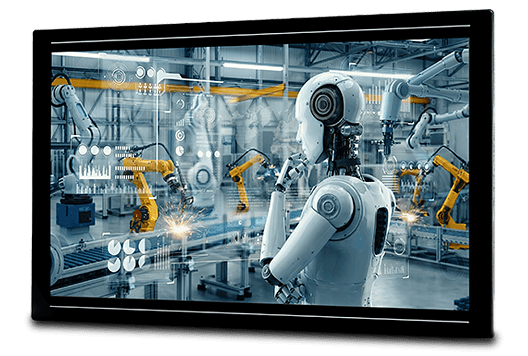

The APPC160 C21-01 and APPC210 C21-01 come with Full HD (1920×1080) displays featuring a 16:9 aspect ratio and narrow bezels; the only difference between them is the screen size. The capacitive touchscreens ensure convenient operator interaction with the system. The front panel is rated IP65, making the devices resistant to dust and moisture and suitable for use in industrial environments.
Main technical specifications:
|
|
||
|
Screen diagonal |
15,6” |
21,5” |
|
Resolution |
1920x1080 |
1920x1080 |
|
Brightness |
400 cd/m2 |
500 cd/m2 |
|
CPU |
Intel Core Ultra 5 125U 1,3GHz |
Intel Core Ultra 5 125U 1,GHz |
|
RAM |
8GB DDR5 5600MHz SO-DIMM (up to 32GB max) |
8GB DDR5 5600MHz SO-DIMM (up to 32GB max) |
|
Storage |
M.2 Key M 2280 SSD (PCIe 4.0 x4) |
M.2 Key M 2280 SSD (PCIe 4.0 x4) |
|
LAN |
4 x GLAN |
4 x GLAN |
|
COM |
1 x RS-232/485 |
1 x RS-232/485 |
|
USB |
4 x USB 3.2 |
4 x USB 3.2 |
|
Power requirements |
12/19/24V DC |
12/19/24V DC |
|
Operational temperature |
0°C~50°C |
0°C~50°C |
|
Dimensions |
388,1 x 245,3 x 67,6mm |
476,06 x 321,2 x 70,6mm |
The APPC160 C21-01 and APPC210 C21-01 panel PCs are designed for use across various industrial and infrastructure sectors, including:
- industrial automation systems and production line control;
- operator panel interfaces and HMI;
- equipment control systems and SCADA;
- smart manufacturing;
- IoT and edge computing at industrial facilities;
- monitoring and dispatch systems.
Thanks to their high computing efficiency, rugged design, and extensive peripheral connectivity options, the new NEXCOM panel PC models can serve as a versatile platform for building modern control and analytics systems at the industrial infrastructure level.
