In the era of connected mobility, transportation computers are rapidly evolving from basic data loggers into intelligent edge platforms capable of supporting autonomous systems, smart fleet management, and real-time AI analytics. These systems must not only endure extreme conditions but also deliver fast, reliable insights that directly impact operational efficiency and safety.

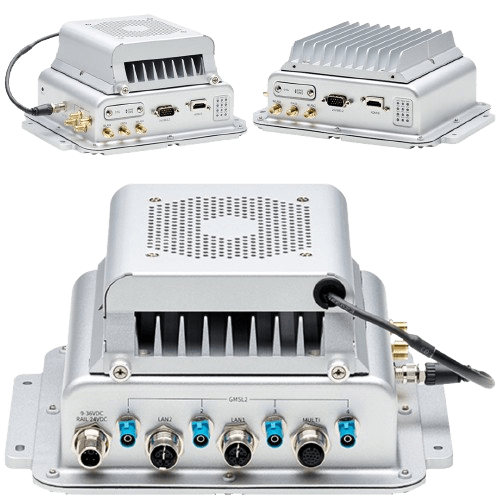

The ATC 3562 from NEXCOM is designed specifically for these demanding scenarios. Built for industries such as mining, it combines rugged durability with powerful edge AI capabilities, ensuring reliable performance even in the most challenging environments.
Built for Extreme Industrial Conditions
Mining environments present constant challenges, including dust, vibration, moisture, and extreme temperature fluctuations. The ATC 3562 is engineered to withstand these conditions with:
- IP67-rated enclosure for protection against dust and water
- Compliance with MIL-STD-810H for shock and vibration resistance
- Wide operating temperature range from –25°C to 65°C
This robust design ensures uninterrupted operation in remote and high-risk locations where system reliability is critical.
Scalable AI Performance at the Edge
The ATC 3562 integrates powerful NVIDIA platforms to deliver high-performance edge computing:
- NVIDIA Jetson Orin Nano™ (Super Mode) – up to 67 TOPS
- NVIDIA Jetson Orin™ NX – up to 157 TOPS
This scalable architecture enables advanced applications such as real-time object detection, hazard recognition, and predictive analytics. As a result, mining operators can make faster, data-driven decisions while maintaining safety and efficiency.
Multi-Sensor Integration for Intelligent Operations
Modern mining systems rely on multiple data sources, including cameras, LiDAR, and positioning systems. The ATC 3562 supports seamless sensor integration and data fusion at the edge:
- 4-channel GMSL2 inputs and dual Gigabit Ethernet
- PCIe 4.0 NVMe SSD for ultra-fast data processing
- Expandable connectivity for GNSS, LTE/5G, and Wi-Fi
This enables low-latency processing for critical applications such as collision avoidance, terrain mapping, and autonomous navigation.
Flexible Connectivity for Mobile Platforms
To ensure stable operation across different vehicle types, the ATC 3562 supports:
- Wide 9–36V DC input with ignition control
- Comprehensive I/O interfaces: USB 3.2, CAN bus, RS-232, DI/DO, HDMI
- Optional wireless modules for continuous communication
These features make integration with existing vehicle systems and telematics platforms straightforward, even in remote mining locations.
Key Features Overview
- High-performance AI computing with NVIDIA Jetson Orin series
- Rugged, fanless IP67 design
- Multi-sensor support (GMSL2, LiDAR, cameras)
- Wide temperature and voltage tolerance
- High-speed NVMe storage (PCIe 4.0)
- Expandable connectivity (5G, Wi-Fi, GNSS)
- Certified for industrial and transportation standards
Ordering Information
- ATC 3562-IP7-NA4M-8 – Jetson Orin Nano™, fanless, up to 67 TOPS
- ATC 3562-IP7-NX4MF – Jetson Orin NX 8GB, up to 157 TOPS
- ATC 3562-IP7-NX4MF-16 – Jetson Orin NX 16GB, maximum AI performance
Conclusion
With the ATC 3562, NEXCOM delivers a powerful solution that combines rugged hardware, scalable AI performance, and flexible connectivity. It is an ideal platform for mining and other heavy industries where real-time intelligence, safety, and reliability are essential for success.
