Axiomtek’s new CEM322 module based on the 10th generation of Intel CPU

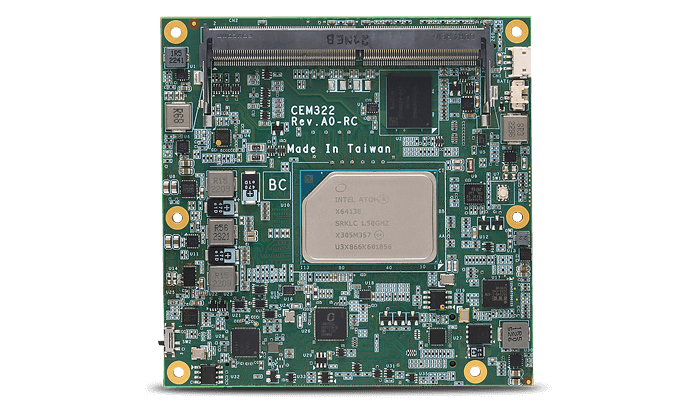

Today we will take a look at Axiomtek’s new product, which is coming soon - COM Express Type 6 Compact Module CEM322

CEM322

The module is based on Intel Atom and Pentium Elkhart Lake processors, as well as two slots for installing DDR4 SODIMM RAM with a maximum supported capacity of 32 GB.

There are two SATA connectors for storage. Optionally, you can add built-in eMMC 5.1 memory up to 64 GB.

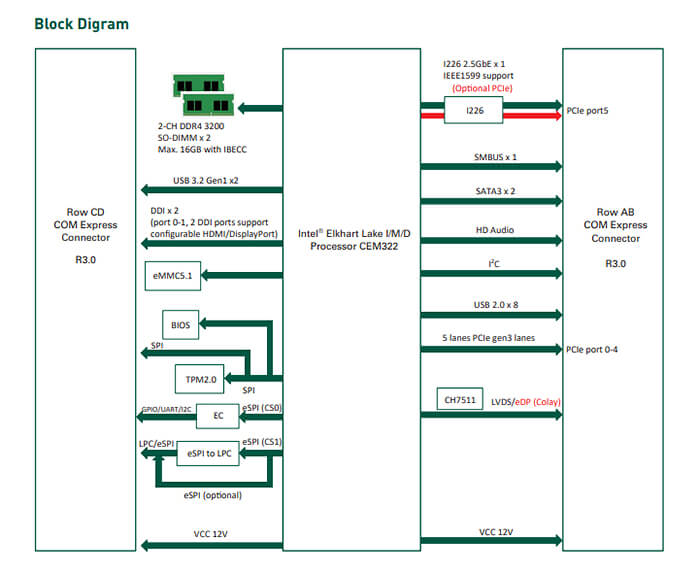

Despite its compact size, the CEM322, in combination with the appropriate carrier board, provides operation with a wide range of buses and input-output interfaces:

• Supports up to 5 x PCIe x1.

• Ability to connect up to ten USB ports (8 x 2.0 and 2 x 3.0).

• Supports one Ethernet port with a speed of 10/100/1000/2500 Mbps (Intel i226 controller)

• Provides support for up to 8-bit GPIO.

• Compatible with LPC, SPI, I2C and TX/RX buses for connecting serial devices.

The standard version (from 0 °C to 60 °C) is available in two modifications:

CEM322-x6413E

CEM322-J6426

Extended temperature version from -40 °C to +85 °C:

CEM322-x6425RE

CEM322-x6414RE

The Compact module (95mm x 95mm) is targeted at mobile and fixed systems that require a compact form factor without sacrificing performance.
