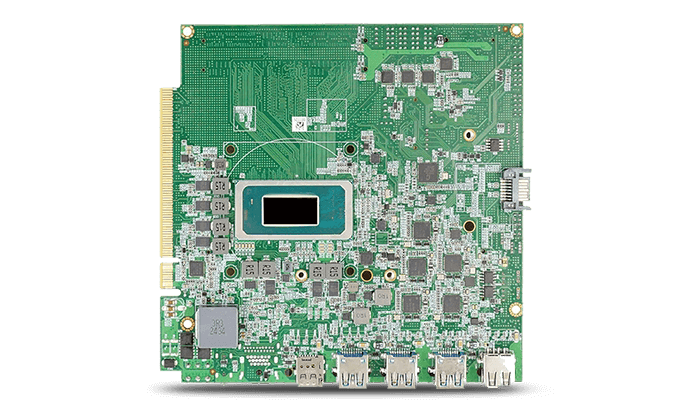

Key features of the 3I140DW:
The board comes with powerful Intel Core Ultra processors (14th generation Meteor Lake-U/H and 15th generation Arrow Lake), providing high performance and energy efficiency.
|
Intel Ultra |
125U |
125H |
155U |
155H |
185H |
|
Turbo boost (GHz) |
4.3 |
4.5 |
4.8 |
4.8 |
5.1 |
|
Cores/Threads |
12/14 |
14/18 |
12/14 |
14/18 |
16/22 |
|
TDP (W) |
15 |
28 |
15 |
28 |
45 |
Two DDR5 SODIMM modules can be installed, with a total capacity of up to 64 GB
Integrated Intel Arc and Intel UHD Graphics provide high-quality visualization and support for multiple independent displays.

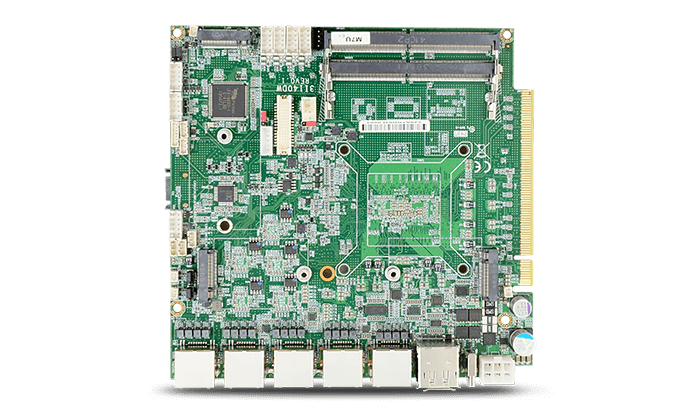

The 3I140DW SBC comes with five 2.5 Gigabit Intel I226-IT network interfaces, three USB 3.2 Gen 1x1 ports, one USB 3.2 Type-C port, and three USB 2.0 ports
Various expansion slots are available, including M.2 M-key for NVMe drives, M.2 B-key for Wi-Fi cards, PCIe x16 for additional system expansion, and a Nano SIM slot.
Built-in security features such as TPM 2.0 and support for various communication protocols, including CANBus and SMBus.
Compatible with Windows 10/11 (64-bit) and Linux Ubuntu 22.04
The single-board computer can operate in extreme conditions thanks to an operating temperature range of -40°C to +70°C and a wide input voltage range of 9 to 36 VDC.
Application:
3I140DW is designed for use in automation systems, vehicles, medical devices and other embedded systems.
Conclusion:
The 3I140DW CPU board by Lex Computech Co LTD offers an innovative solution for today's technology, delivering high performance, flexibility and reliability. It is an excellent choice for developers and engineers looking to create advanced and efficient systems.
