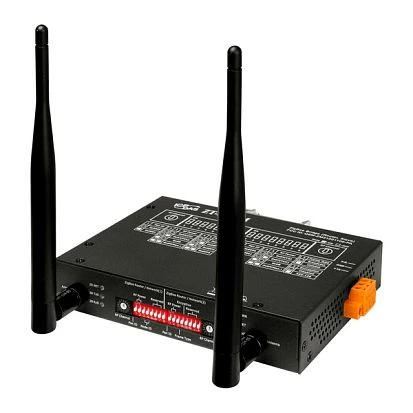

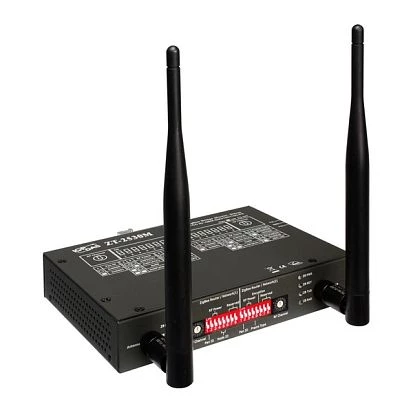

ZT-2530M

ZT-2530M

ICP DAS
SKU: 07088200
ZigBee Bridge Module (ZigBee Coordinator and ZigBee Router) (RoHS)
Price on request
Available
Available
RF Interface
Radio Standard
ZigBee (Host, Coordinator), ZigBee (Slave, Router)
Connectors
Connectors
USB type B
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
30 mm
Depth
125 mm
Height
160 mm
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.15 kg
Gross Weight
0.51 kg
RF Interface
Radio Standard
