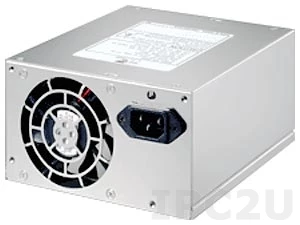

ZIPPY PSM-6600P
ZIPPY
SKU: 02054100
AC Input 600W ATX Power Supply, EPS12V, with Active PFC, Depth 160mm, RoHS
Price on request
Available
Available
Power Supply
Type of Power Supply
Industrial, ATX, PS/2
Output Power
600 W
Type of input voltage
AC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB, +12 V2
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
AC Input
Dimensions and weight
Width
150 mm
Height
86 mm
Depth
160 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC Class B
Safety
UL, TUV, CSA
Dimensions
Net Weight
1.8 kg
Gross Weight
1.8 kg
