ZIPPY HP2-6500P
ZIPPY
SKU: 02238700

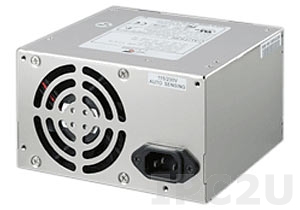

AC Input 500W ATX Industrial Power Supply, ATX12V, with Active PFC
Price on request
Available on order
Available on order
Power Supply
Type of Power Supply
Industrial, ATX, PS/2
Output Power
500 W
Type of input voltage
AC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage AC
90..264 V
Construction
Mounting Configuration
Embedded
Connectors
Connectors
AC Input
Dimensions and weight
Width
150 mm
Height
86 mm
Depth
140 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC Class B
Safety
CCC, UL, TUV
Dimensions
Net Weight
1.7 kg
Gross Weight
2.17 kg
