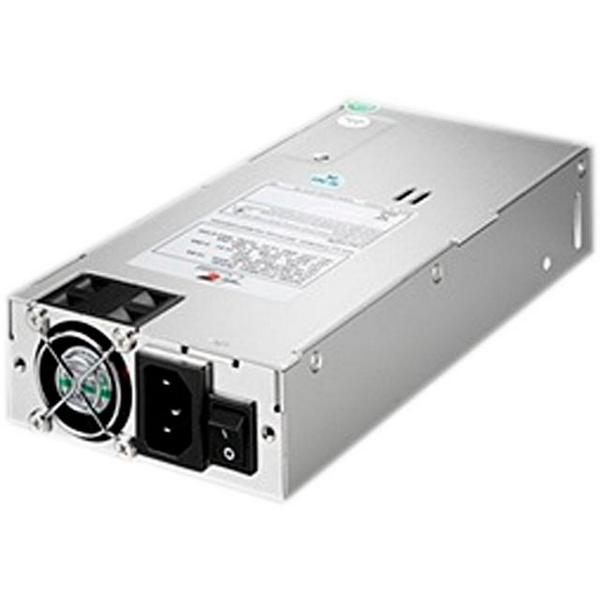

ZIPPY P1H-5500K
ZIPPY
SKU: 07375000
1U AC Input 500W ATX Industrial Power Supply, 80 Plus Gold
Price on request
Available
Available
Power Supply
Type of Power Supply
1U, ATX
Output Power
500 W
Quantity of Power Modules
1
Type of input voltage
AC
Output Voltage DC
-5 V, -12 V, +5 V, +12 V, +3.3 V, +5 VSB
Input Voltage DC
90..264 V
Construction
Mounting Configuration
Embedded
Dimensions and weight
Width
100 mm
Height
40.5 mm
Depth
225 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
FCC
EMI
EN 61000-3-2, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-4, EN 61000-4-5
Safety
UL, cUL, TUV
Dimensions
Net Weight
1.59 kg
Gross Weight
1.59 kg
