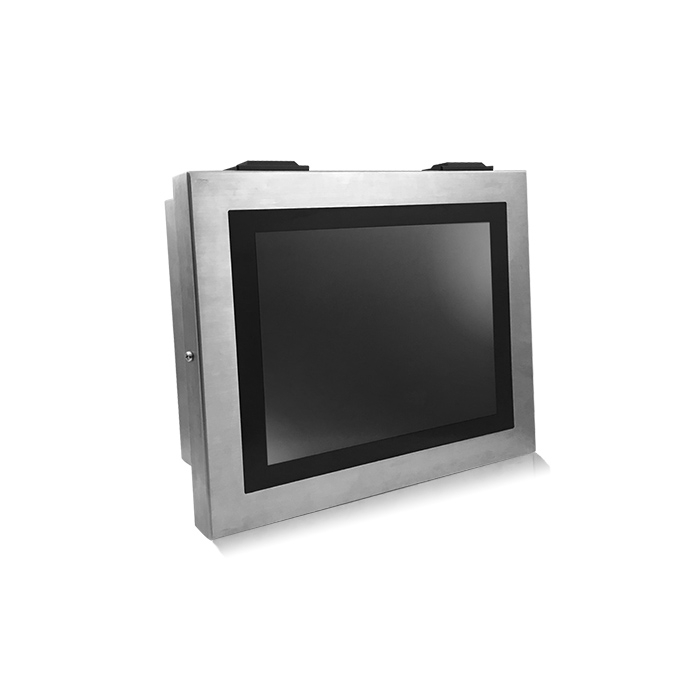

WTPE-9H66-15W-i5
Wincomm
SKU: 80130800
15" Panel PC, ATEX/C1D2/IECEx Certified, Full IP66/NEMA4X, 1024x768, Resistive Touch, Intel Core i5-1345URE CPU, 8GB DDR5 RAM, 512GB 2.5" SSD, 4xM16 (2xUSB 2.0, 2xGbE LAN, 1xCOM), 2xM12 (1xUSB 2.0, 1xCOM), M.2 Key-E, 24VDC-in M16 with 100W PSU
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP66, NEMA 4
Protection Level of Chassis
IP66, NEMA4
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
450 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-1345URE
Socket
FCBGA1744
Max CPU frequency
4.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
512 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2230 E
LED / Controls
Controls
On/Off
Connectors
Connectors
M12 USB, M12 COM, M16 (DC), 4xM16
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
100 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
435 mm
Height
350 mm
Depth
84 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC, VCCI
Explosion safety
IECEx
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Dimensions
Net Weight
13 kg
Gross Weight
15 kg
