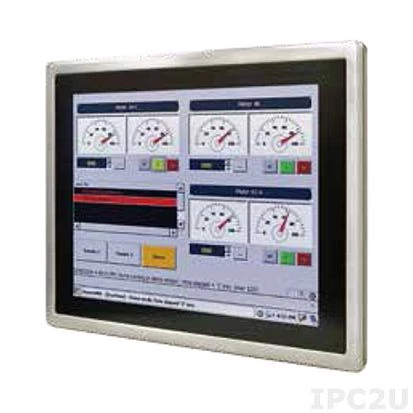

R15ID3S-65EX
Winmate
SKU: 56155200
15" 1024x768, 550nits Resistive Touch Screen Bonding with Panel (Explosion-Proof), Intel Dual Core N2600 CPU, 4GB DDR3, 128GB SSD, Operating Temperature: -20шC to 60шC, IP65, Class1, Division 2 & ATEX Zone 2 device certified, w/o OS
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Atom N2600
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
Default on Board Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
RS-232
1
USB Total
2
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Standard 7
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
7.5 kg
Gross Weight
8 kg
