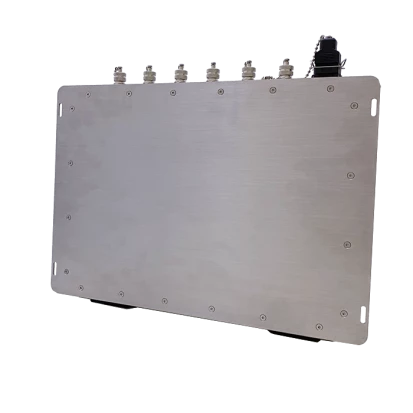

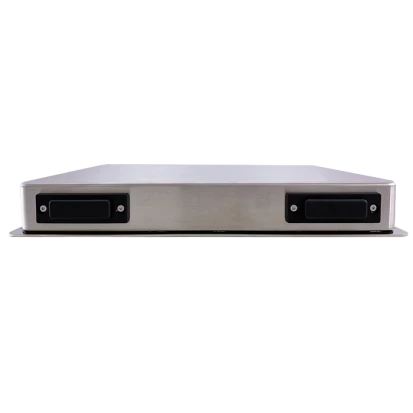

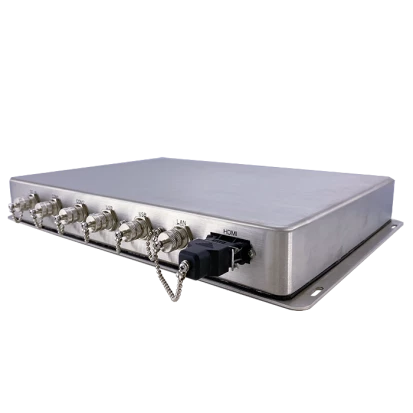

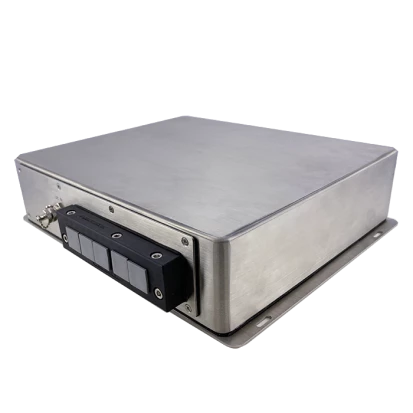

WTC-9H0
Wincomm
SKU: 57934300
Fanless Rugged Box PC, IP66/IP69K/NEMA4X, Intel 12th Gen Core i5-1245UE CPU, Up to 32GB DDR4 RAM, 128GB SSD, HDMI, 1xGbE M12 LAN, 2xM12 RS232/422/485, 2xM12 for 4xUSB 2.0, 1x2.5" Drive Bay, 1xM.2 2280, 1xM.2 2230, 1xM.2 3052, 12-28VDC-in w/PSU (IP68)
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP66, NEMA 4X, IP69K
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1245UE
Socket
CPU onboard
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B, 2260 M
Connectors
Connectors

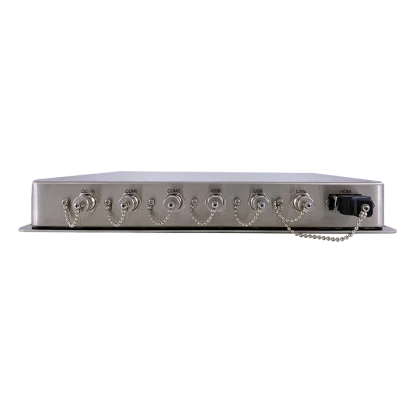

HDMI, M12 USB, M12 DC-in, M12 LAN, M12 COM
System Power Input
Input Voltage DC
12..28 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
363 mm
Height
48 mm
Depth
274 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, VCCI
Dimensions
Net Weight
6.1 kg
Gross Weight
8.1 kg
