WMP-27T-PIS-IP0A-i5
Wincomm
SKU: 80392000

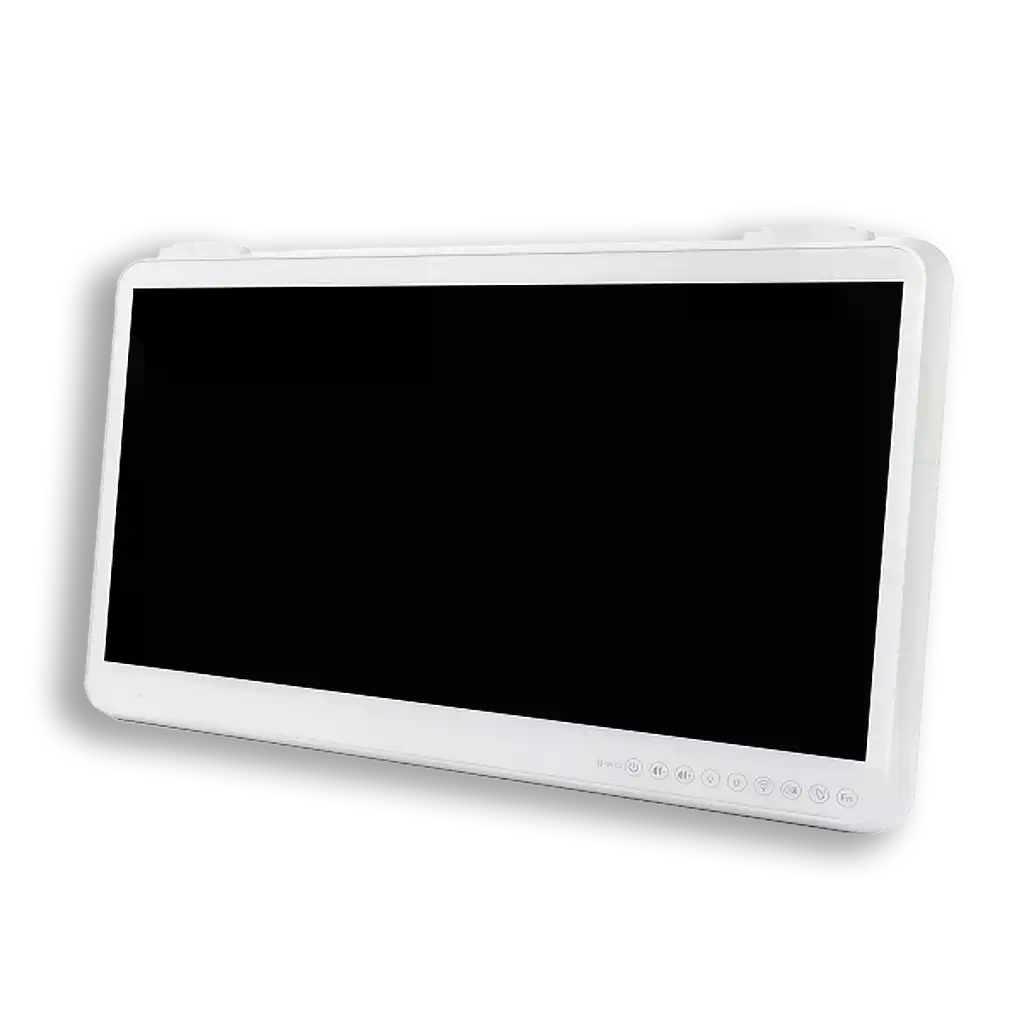

27" Medical Panel PC, IP65/54 Front/Rear, 3840x2160, 500cd/m2, PCAP Touch, Intel 13th Gen Core i5-13600HE CPU, 8GB DDR5 RAM, 128GB NVMe SSD, 1xDP, 1xHDMI, 2xLAN, 4xUSB 3.2, 2xCOM, 1x2.5" Bay, 1xM.2 Key-E, 1xPCIe x8, 100-240AC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
27 "
Maximum resolution
3840x2160 Dots
Aspect Ratio
16:9
Brightness
500 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-13600HE
Socket
FCBGA1744
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
PCI Express x8
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons, Function Keys, Volume Keys
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, AC Input, Display Port
Power Supply
Type of Power Supply
Internal
Output Power
250 W
AC input voltage
100-240 V
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
657.8 mm
Height
413.6 mm
Depth
68 mm
Operating Conditions
Operating Temperature
0..35 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class B, VCCI
Medicine
UL 60601-1, EN 60601-1
Dimensions
Net Weight
11.7 kg
Gross Weight
13.2 kg
