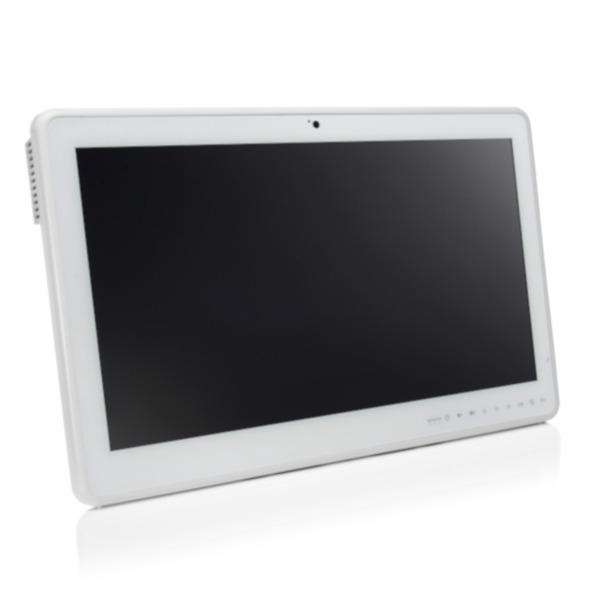

WMP-22H-IP0A-i5
Wincomm
SKU: 56789500
21.5" TFT LCD Medical Panel PC, PCAP Full flat, Full HD, 250 nits, Intel Core i5-7500T 2.7GHz, Up to 32GB DDR4(4GB Default), 128GB SSD, 2xCOM, 4xUSB 3.0, 2xGbE LAN, 2xDP,Audio, 1xPCIe x4, 1xMini PCIe, M.2 Type E, Hot Swap batteries, 14-28V DC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-7500T
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xDIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
128 GB
Extension Slots
Total
3
PCI Express x4
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
14..28 V
Power Supply
Type of Power Supply
Medical, External power adapter AC/DC
Software
Operating System Installed
Windows IoT Enterprise 10
Dimensions and weight
Width
541 mm
Height
352.9 mm
Depth
56 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
FCC, VCCI
Medicine
UL 60601-1, EN 60601-1, UL 60601-1-1-2
Safety
UL/cUL
Dimensions
Net Weight
6.7 kg
Gross Weight
10 kg
