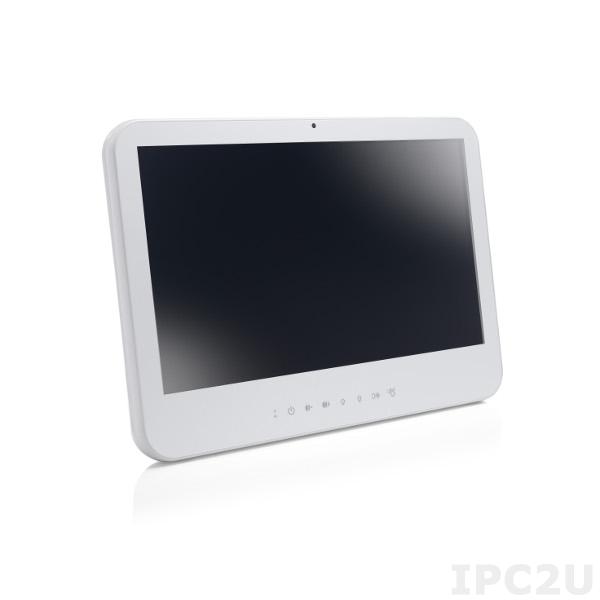

WMP-22F
Wincomm
SKU: 56556400
21.5" TFT LCD, IP65 Front, Medical Panel PC, Smart Fan, Pcap 10-point - Full Flat, Full HD, 250 nits, Intel Core i5-6500TE 2.3GHz, 4GB DDR4, 128GB SSD, 2xCOM, 4xUSB, 2xGbE LAN, DP, DVI, 1xPCIe x16, 2xMini PCIe, 7-32V DC, Power Adaptor 180W
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fan
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-6500TE
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Max CPU frequency
3.3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
500 GB
Extension Slots
Total
3
PCI Express x16
1
Mini-PCIe/Mini Card
2
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset, Control Buttons
Connectors
Connectors
2xDB9, DVI-I, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
7..32 V
Power Supply
Type of Power Supply
Medical, External power adapter AC/DC
Supported Types of Power Supply
Li-battery Pack
Dimensions and weight
Width
540 mm
Height
375 mm
Depth
78 mm
Standards and Certifications
Certifications
FCC, VCCI
Medicine
UL 60601-1, EN 60601-1
Safety
UL/cUL
Dimensions
Net Weight
6.7 kg
Gross Weight
10 kg
