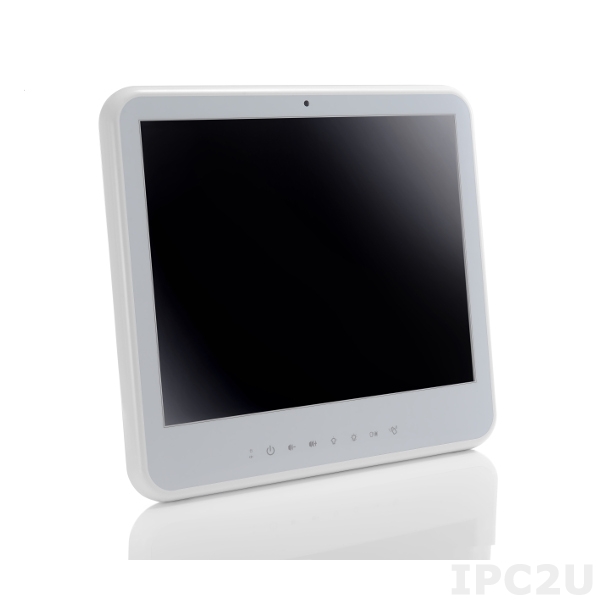

WMP-197V-PCT
Wincomm
SKU: 55855500
19" TFT LCD Medical Panel PC, Fanless, PCT touch, Intel i5-3317U 1.7GHz, 4GB DDR3 RAM, 320GB HDD, 2xGbit LAN, 2xRS232/422/485, 4xUSB, Audio, PCIe x16 Slot, 12V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-3317U
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 4000
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Storage Cage
2.5" Cage Intenal
2
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
450 mm
Height
420 mm
Depth
85.3 mm
Operating Conditions
Operating Temperature
0..40 °C
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-3317U
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 4000
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Storage Cage
2.5" Cage Intenal
2
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
450 mm
Height
420 mm
Depth
85.3 mm
Operating Conditions
Operating Temperature
0..40 °C
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-3317U
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 4000
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Storage Cage
2.5" Cage Intenal
2
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
450 mm
Height
420 mm
Depth
85.3 mm
Operating Conditions
Operating Temperature
0..40 °C
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-3317U
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 4000
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Storage Cage
2.5" Cage Intenal
2
Installed drive
Drive Type
HDD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
64 GB
Extension Slots
PCI Express x16
1
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input
Dimensions and weight
Width
450 mm
Height
420 mm
Depth
85.3 mm
Operating Conditions
Operating Temperature
0..40 °C
Dimensions
Net Weight
7 kg
Gross Weight
10 kg
Get a Quote
