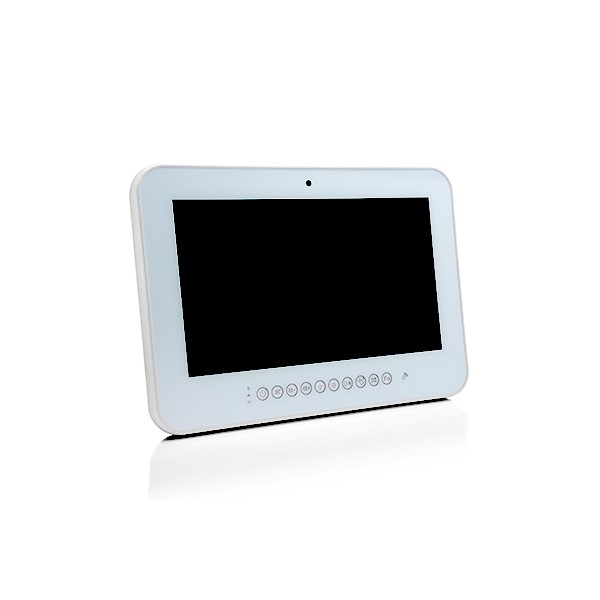

WMP-155
Wincomm
SKU: 08562300
15.6" TFT LCD Medical Panel PC, Fanless, capacitive touch screen, Intel Celeron J3455 1,5 GHz, 4GB DDR3L RAM, 128GB M.2 SSD, 2xCOM, 4xUSB, 2xGbE LAN, 2xDisplayPort, 2xMini PCIe, power adaptor 90-264V AC 12V DC 100W
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Desktop, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IPX1
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1366x768 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron J3455
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
Extension Slots
Total
2
PCI Express x1
1
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, 1xKeyLock, Control Buttons
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
7..32 V
Power Supply
Type of Power Supply
Medical, External power adapter AC/DC
Output Power
100 W
Supported Types of Power Supply
Li-battery Pack
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
430 mm
Height
300 mm
Depth
83 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Medicine
UL 60601-1, UL 60601-1-1-2
Safety
UL/cUL
Dimensions
Net Weight
6 kg
Gross Weight
8 kg
