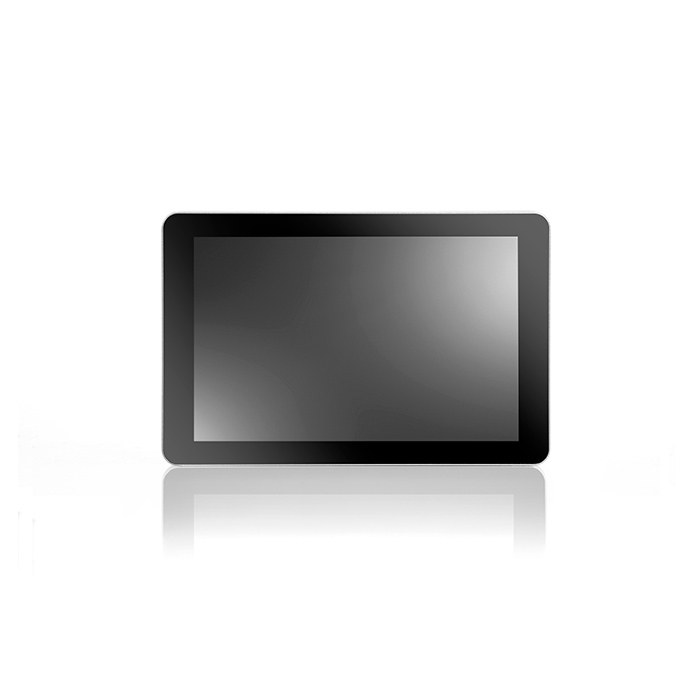

WMP-109
Wincomm
SKU: 80131000
10.1" Fanless Medical Panel PC, UL/MDR Certified, IP65 Front, 1280x800, PCAP Touch, Intel Celeron N97, 8GB DDR5 RAM, 128GB NVME SSD, 2xHDMI, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 1xCOM, 1xM.2 Key-E, 1xMiniPCIe, Audio, 12-36VDC with 63W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
12..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
63 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
263.3 mm
Height
171 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC, VCCI
Dimensions
Net Weight
1.27 kg
Gross Weight
1.85 kg
