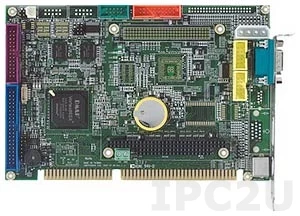

VSX-6121-V2
ICOP
SKU: 05349000
ISA Vortex86SX 300MHz CPU Card, 128Mb DRAM, GPIO, 4xUSB
Price on request
Available
Available
System Architecture
Form Factor
Proprietary
Construction
Type
Fanless
CPU
CPU Support Type
Vortex86
Processor Installed
Vortex86SX
Socket
CPU onboard
Max CPU frequency
0.3 GHz
Number of CPU
1
Chipset
Chipset
Vortex86SX
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
0.25 GB
Maximum Memory
0.25 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
XGI Volari Z9S
Interfaces
LVDS, VGA
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
4
Audio
Audio Controller
CM119
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
44-pin IDE, USB 2.0, 10-pin RS-232, 16-pin LVDS, 3-pin RS-485, 6-pin JTAG, 20-pin GPIO, 2-pin Reset, 10-pin VGA
Connectors
RJ45, 5-pin DIN
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Linux OS
Dimensions and weight
Width
184 mm
Length
122 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
0.51 kg
