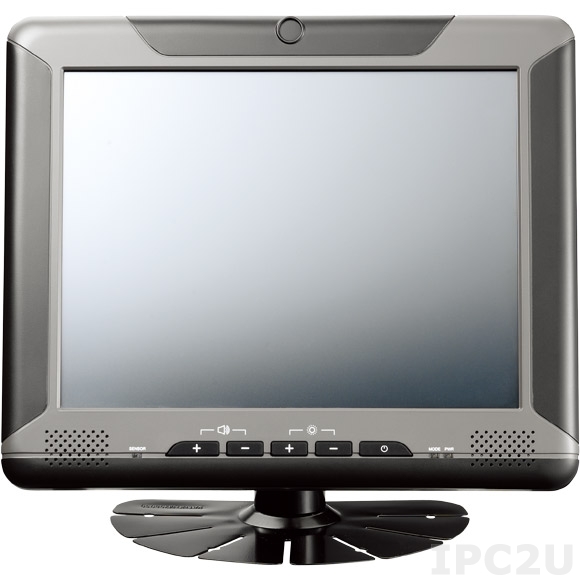

VMD-2002-B
NEXCOM
SKU: 06232900
8" LCD SVGA display w/Touch Screen 4 wire resistive, DVI-D integrating VGA, USB x 1 and 12Vdc x 1, 9~36VDC
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Material Front Side (Panel)
ABS plastic
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
800x600 Dots
Brightness
400 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Additional Functions
Camera Frontside
2 MP
Connectors
Connectors
DVI-D, LVDS, 1xUSB, Mic In, Line In, Line Out, SD/MMC/MS Card Reader
System Power Input
Input Voltage DC
9..36 V
Power Consumption
15 W
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
Random: 2.5g, 5~500 Hz
Shock
Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g
Dimensions and weight
Width
207 mm
Height
173 mm
Depth
36.7 mm
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
1 kg
