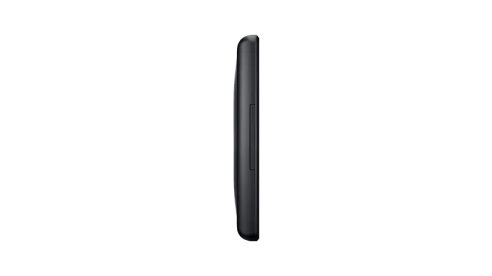

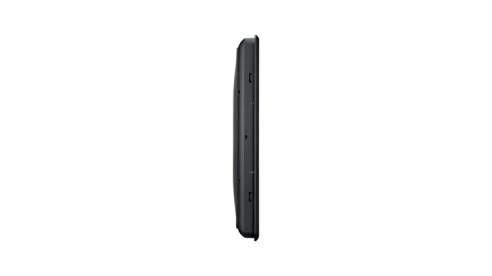

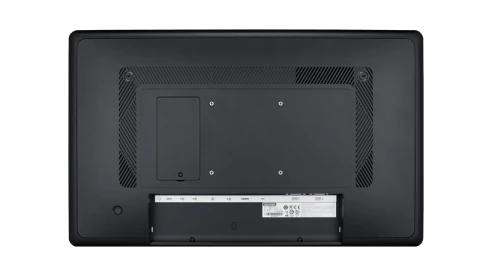

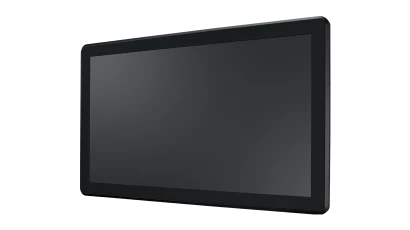

UTC-320SLP-ATB0E
Advantech
SKU: 80160700
21.5" Ubiquitous Panel PC, IP65 Front, Fan Design, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-14400T CPU, Up to 32GB DDR5 RAM, HDMI, 2xGbE LAN, 2xCOM, 3xUSB 3.2, 3xUSB 2.0, 1xM.2 Key-M, 1xM.2 Key-E, Audio, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fan
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
3
USB v3.x
3
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
Connectors
Connectors

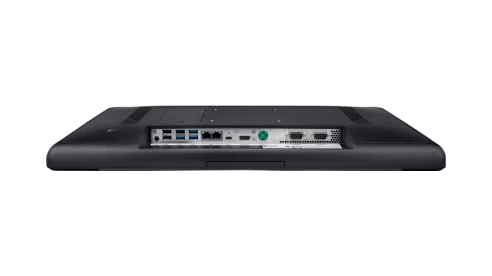

2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
180 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
536 mm
Height
327.5 mm
Depth
46 mm
Operating Conditions
Operating Temperature
0..40 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Safety
CCC, CB, UL, BSMI
Dimensions
Net Weight
5.8 kg
Gross Weight
7 kg
