SFP-10GLRLC-T

SFP-10GLRLC-T

MOXA
SKU: 08793300

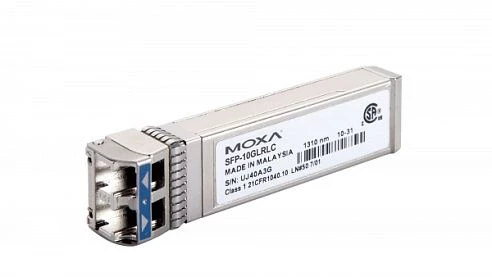

SFP Interface Module with 1x10G BaseLR, LC Connector, 10km Supported, -40...+85C
Price on request
Available
Available
Ethernet
Total Ethernet
1
10 Gbit/s
1
Type 10 Gbit/s
LC Duplex
SFP module type
Two-fiber, Duplex
10 Gbit SFP+ Ports
1
Fiber
Type of Fibre Optic
single-mode
Transmission Range
10 km
Length Wave RX/TX
1310 nm
Supported Protocols
IEEE Standard
IEEE 802ae for 10 Gigabit Ethernet
Dimensions and weight
Width
14.8 mm
Depth
56.5 mm
Height
11.9 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Safety
UL 60950-1
Dimensions
Gross Weight
0.09 kg
