SCTP20-01

SCTP20-01

Dataforth
SKU: 06079500
Configurable Two-Wire Temperature Transmitter, Head Mount, input: RTD/thermocouple/mV, output: 4...20mA
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Embedded
Analog Input
Thermocouple
K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, B: 0...1820 °С, N: -270...+1300 °С, L: -200...+800 °С, S: -50...+1760 °С, C: 0...+2315°C, J: -210 ... +1200°C, R: -50 ... +1765°C, J: -100...+300 °С, D: 0...+2315 °С
Thermal resistance
Pt100, Ni100
Total channels of analog input
1
Analog Output
Channels of analog input
1
Current range
4...20 mA
Connectors
Connectors
Screw Terminal

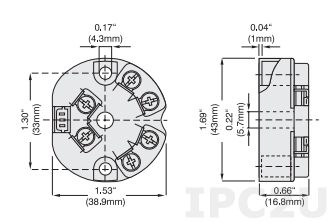

Dimensions and weight
Width
43 mm
Depth
17 mm
Height
43 mm
Operating Conditions
Operating Temperature
-25..80 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.15 kg
