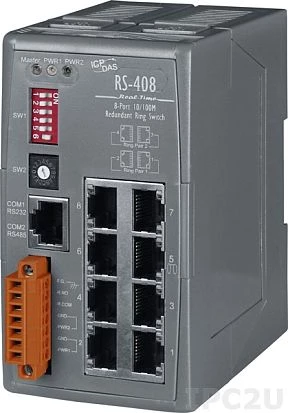

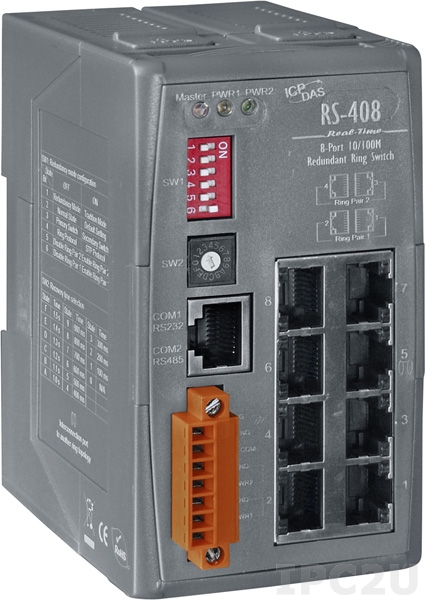

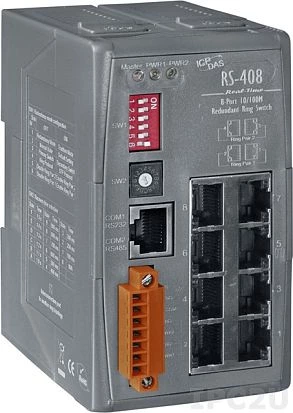

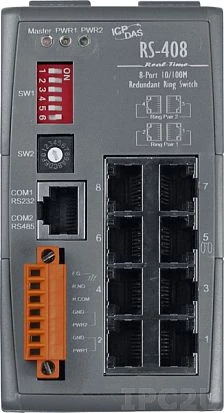

RS-408
ICP DAS
SKU: 05022400
Industrial Redundant Ring Switch with 8 10/100 Base-TX Ports
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
10..30 V
Power Supply Reserve input Voltage DC
10..30 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
64 mm
Depth
98 mm
Height
118 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
