RM-108

RM-108

ICP DAS
SKU: 01072800

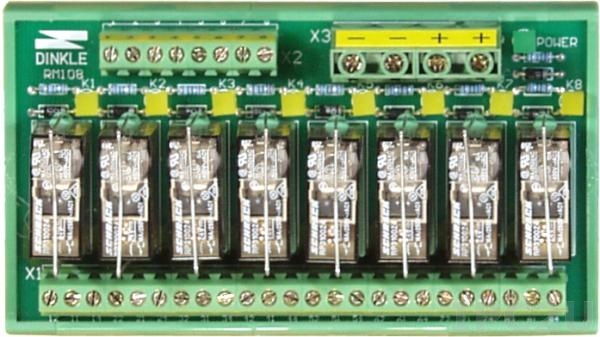

8 Channels Power Relay Module for DIN-Rail
End-of-life product

Construction
Mounting Configuration
DIN-Rail mount
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
135 mm
Depth
63 mm
Height
87 mm
Dimensions
Gross Weight
0.5 kg

Documentation
datasheet datasheet-rm-104-cr I-7000 DIO Manual. Drawing RM-108

Request for replacement

ICP DAS
SKU: 01072800
RM-108
