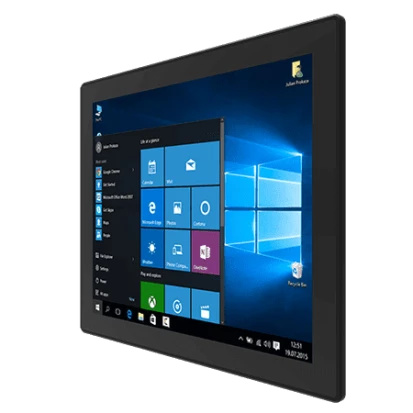

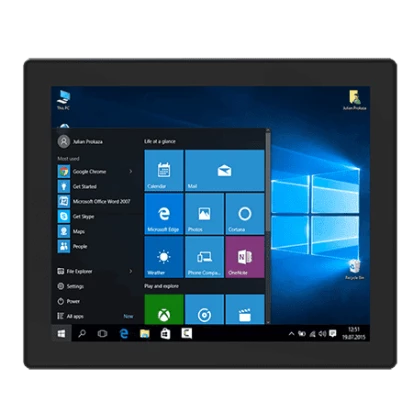

R19ITWS-MHA3-EX
Industrial HMI 19'' Panel PC features Intel i5 Core, up to 64 GB DDR4 RAM, rugged fanless design, 4xUSB
With certification according to demanding standards such as C1D2 and ATEX Zone 2, the industrial panel PC R19ITWS-MHA3-EX qualifies for use in extreme environments and impresses under these conditions with flexible hardware configuration that allows extensive customization of interfaces and performance.
As its main processor, the R19ITWS-MHA3-EX uses an Intel Core i5-1135G7 CPU originating from the mobile microchip segment. It delivers a maximum processing speed of 2.40 GHz on up to four physical cores and eight virtual threads with an exceptionally low power consumption of less than 28 watts TDP-UP and 12 watts TDP-DOWN. For memory and permanent storage, the R19ITWS-MHA3-EX provides an externally accessible 2.5'' drive bay, an M.2 NVMe expansion slot, and two memory banks supporting up to 64 GB DDR4 RAM.
As an industrial panel PC, the R19ITWS-MHA3-EX distinguishes itself from many of its competitors by offering a very high number of expansion ports, including mini card, M.2 Key Slots E and M, as well as a PCI Express x16 slot. This allows the hardware to be expanded with various advanced interfaces including external GPUs or autonomous co-processors for AI applications and neural networks. Native I/O output and connection of simpler peripherals via the PnP interface are provided through four USB 3.2 ports, dual RS232/422/485 serial COM ports, and one RS232 port.

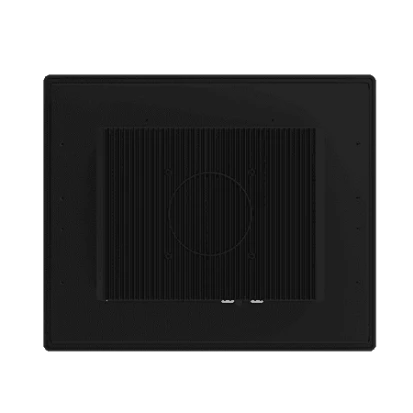

Despite its fanless design, the R19ITWS-MHA3-EX is engineered for operation in extreme environmental conditions and is certified to standards such as C1D2 for hazardous environments, ATEX Zone 2 for explosive areas, and IECEx for fire hazards or direct contact with aggressive chemicals and solvents. In line with these above-average requirements, the industrial panel PC R19ITWS-MHA3-EX also withstands extreme temperatures from -20° Celsius to +60° Celsius and is fully sealed at the front to IP65 against the ingress of dust, moisture, or cleaning agents. Key application areas of the R19ITWS-MHA3-EX include plant and machinery construction, with additional potential use in infotainment, digital surveillance, or SCADA and H2M terminals in industrial settings.
Industrial HMI 19'' Panel PC features Intel i5 Core, up to 64 GB DDR4 RAM, rugged fanless design, 4xUSB
With certification according to demanding standards such as C1D2 and ATEX Zone 2, the industrial panel PC R19ITWS-MHA3-EX qualifies for use in extreme environments and impresses under these conditions with flexible hardware configuration that allows extensive customization of interfaces and performance.
As its main processor, the R19ITWS-MHA3-EX uses an Intel Core i5-1135G7 CPU originating from the mobile microchip segment. It delivers a maximum processing speed of 2.40 GHz on up to four physical cores and eight virtual threads with an exceptionally low power consumption of less than 28 watts TDP-UP and 12 watts TDP-DOWN. For memory and permanent storage, the R19ITWS-MHA3-EX provides an externally accessible 2.5'' drive bay, an M.2 NVMe expansion slot, and two memory banks supporting up to 64 GB DDR4 RAM.
As an industrial panel PC, the R19ITWS-MHA3-EX distinguishes itself from many of its competitors by offering a very high number of expansion ports, including mini card, M.2 Key Slots E and M, as well as a PCI Express x16 slot. This allows the hardware to be expanded with various advanced interfaces including external GPUs or autonomous co-processors for AI applications and neural networks. Native I/O output and connection of simpler peripherals via the PnP interface are provided through four USB 3.2 ports, dual RS232/422/485 serial COM ports, and one RS232 port.
Despite its fanless design, the R19ITWS-MHA3-EX is engineered for operation in extreme environmental conditions and is certified to standards such as C1D2 for hazardous environments, ATEX Zone 2 for explosive areas, and IECEx for fire hazards or direct contact with aggressive chemicals and solvents. In line with these above-average requirements, the industrial panel PC R19ITWS-MHA3-EX also withstands extreme temperatures from -20° Celsius to +60° Celsius and is fully sealed at the front to IP65 against the ingress of dust, moisture, or cleaning agents. Key application areas of the R19ITWS-MHA3-EX include plant and machinery construction, with additional potential use in infotainment, digital surveillance, or SCADA and H2M terminals in industrial settings.
