R15IB3S-65EX
Winmate
SKU: 56535500

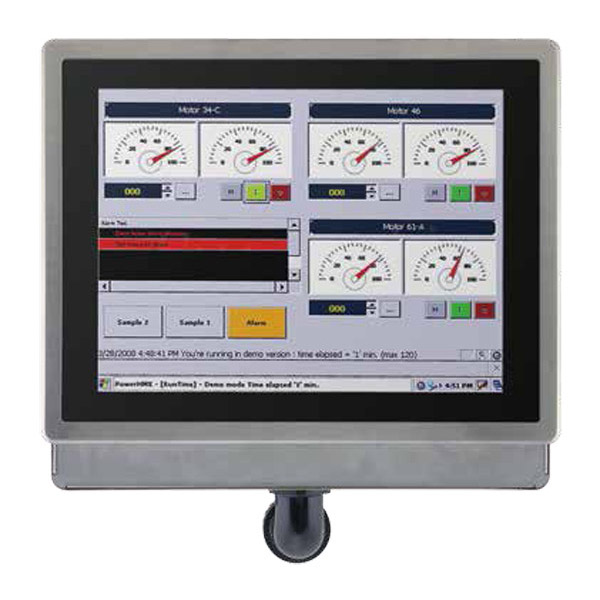

15" TFT LCD Industrial ATEX Panel PC, 1024x768, 550 nit, Intel Celeron Processor N2930, PCAP touch, 4GB DDR3L, 128GB SSD, 1xUSB, 1xCOM, 1xGbit LAN, 9-36V DC, ATEX Zone 2 certified, Class 1, Division 2 & ATEX Zone 2 & IECEx Zone 2
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Protection Level of Chassis
IP65
Type
Fanless
Display
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
550 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows Embedded Compact 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
396 mm
Height
310 mm
Depth
49 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
10.2 kg
Gross Weight
11.5 kg
