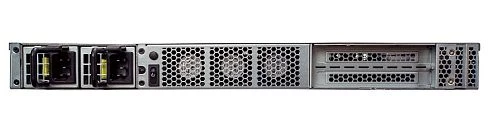

PUZZLE-IN001-i3T/R
IEI
SKU: 08283100
1U Network Security Platform with Intel Core i3-8100T, 2x288-pin DDR4 DIMM ECC, Non-ECC, 2x2.5" SATA HDD/SDD, 8xGbE LAN, 2xUSB 3.0, PCIe x8, PCIe x4, 1xPCIe mini card, 1xM.2 A key, redundant power supply 90-264 V AC, 300 W, 0..+40C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
19" Rackmount
Height
1 U
Type
Fans
CPU
Processor Installed
Intel Core i3-8100T
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel C246
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
Yes
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211
Total Ethernet
8
10/100/1000 Mbit/s
8
Interfaces
USB Total
6
USB 2.0
4
USB v3.x
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
4
PCI Express x8
1
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
1xHDD LED, 1xOn/Off LED, Power LED, FAULT LED
Controls
On/Off
Connectors
Internal Ports
4xUSB 2.0
Connectors
2xUSB, AC Input, Console Port RS-232 (RJ-45), 1xSMA, 8xRJ45 Ethernet
System Power Input
Input Voltage AC
90..264 V
Power Supply
Type of Power Supply
Redundant
Output Power
300 W
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
430 mm
Height
44.2 mm
Depth
426 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
7 kg
Gross Weight
8.5 kg
