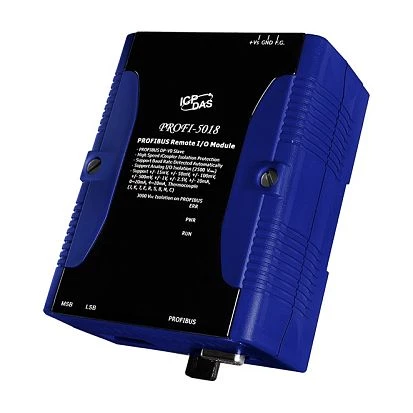

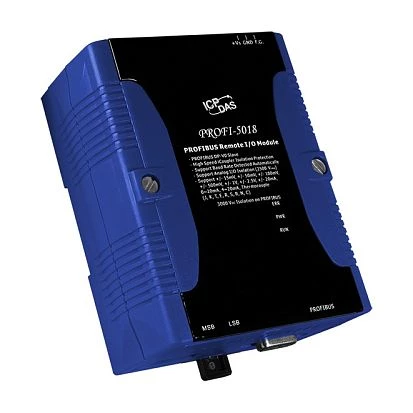

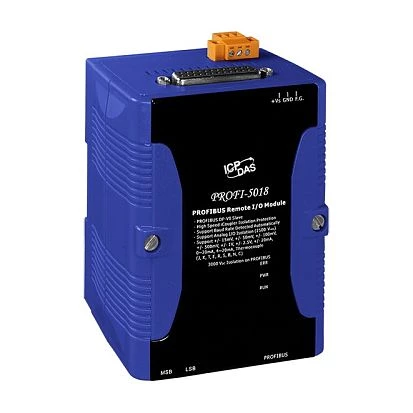

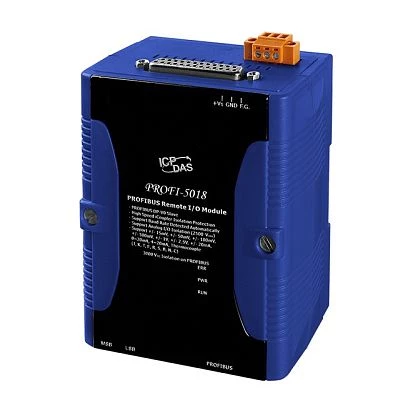

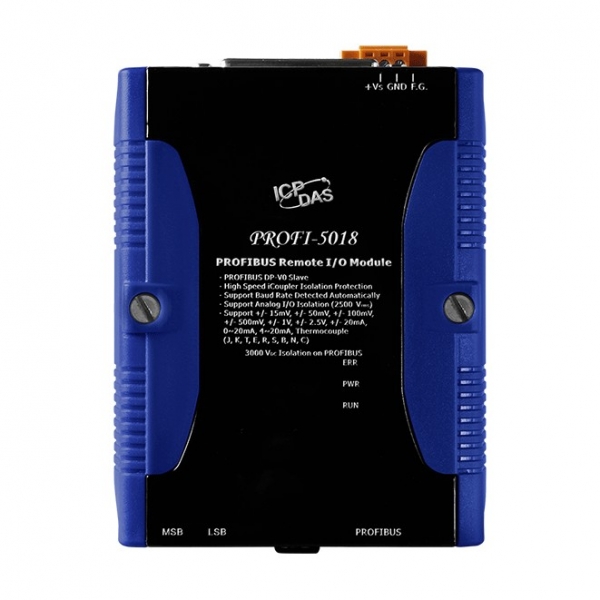

PROFI-5018/S
ICP DAS
SKU: 06504700

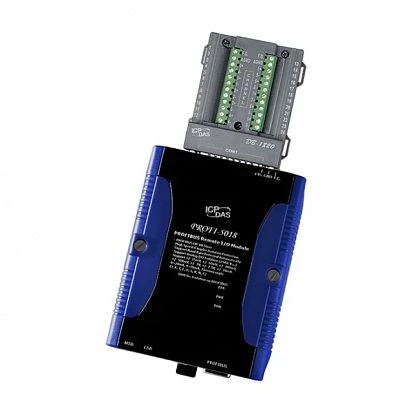

PROFIBUS Remote I/O Module, 10-channel Thermocouple Input with High Voltage Protection, with DB-1820 daughter board
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Industrial Interfaces
Profibus DP Version
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Profibus slave
Analog Input
Total channels of analog input
10
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
10
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С
Connectors
Connectors
DB9, DB25
System Power Input
Input Voltage DC
10..40 V
Dimensions and weight
Width
91 mm
Depth
52 mm
Height
128 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
0.4 kg
