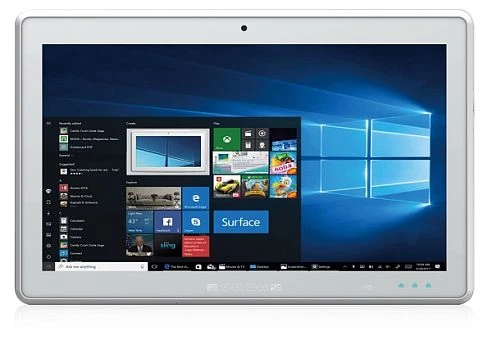

POCm-W24C-ULT3-i5/PC/4G
IEI
SKU: 08071100
Medical panel PC 24" LED, 250 cd/m2, Intel Core i5-6300U with 2.4 GHz, 4 Gb DDR4 260-pin SO-DIMM, PCAP, 2.5"SATA3 HDD, 2xCOM, 4xUSB, 2xGbE LAN, 2xHDMI, 1xPCIe Mini, Wi-Fi, BT, 5MP camera, Audio, 3xbattary slots, 12-28V DC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Core i5-6300U
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Battеry Status, Power LED, RFID LED
Connectors
Connectors
2xHDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, 4-pin DC input, 2xDB9 Male
System Power Input
Input Voltage DC
12..28 V
Power Supply
Output Power
150 W
Supported Types of Power Supply
Medical, External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise
Dimensions and weight
Width
543 mm
Height
350 mm
Depth
61 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class B
Medicine
IEC 60601-1
Dimensions
Net Weight
7 kg
Gross Weight
8.5 kg
