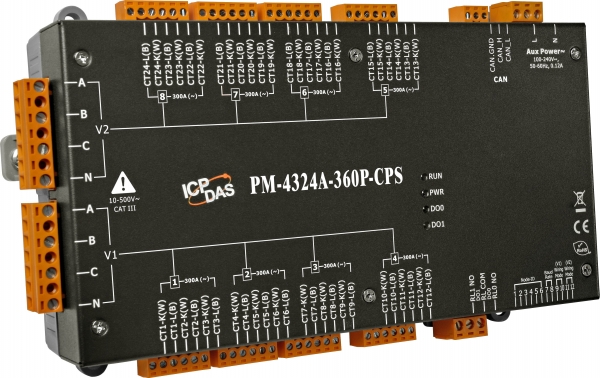

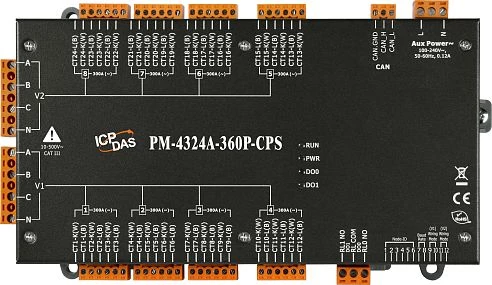

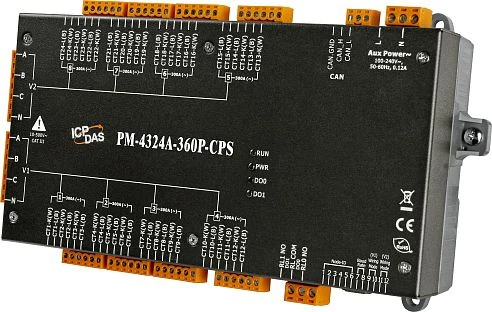

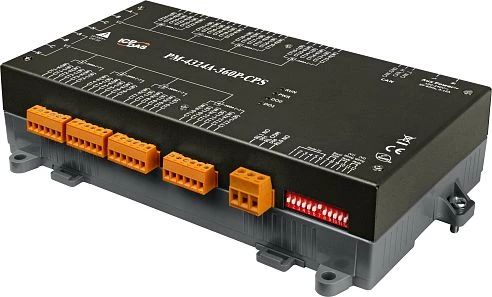

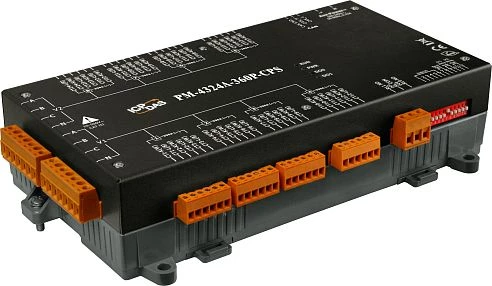

PM-4324A-360P-CPS
ICP DAS
SKU: 09579200
CANopen, Multi-Channel Power Meter (300 A) with 2 separate main circuit inputs
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
CANopen, CAN Slave
System Power Input
Input Voltage AC
85..264 V
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Voltage measurement channels
2 (three-phase)
Input Current
300А
Current measurement channels
24
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions and weight
Width
52 mm
Depth
237 mm
Height
134 mm
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
