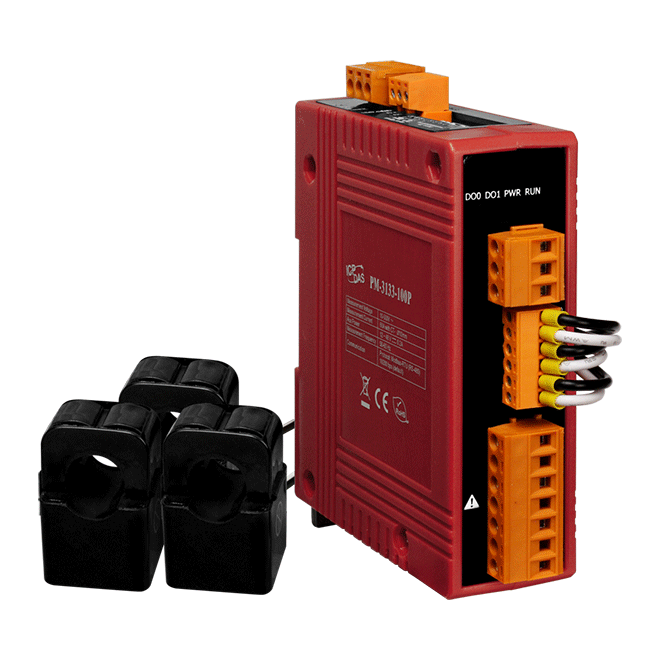

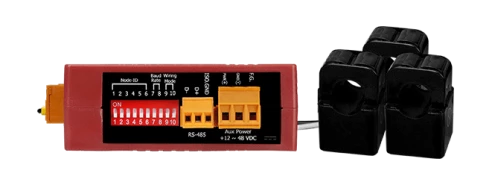

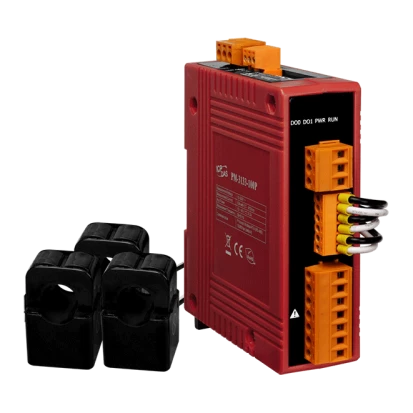

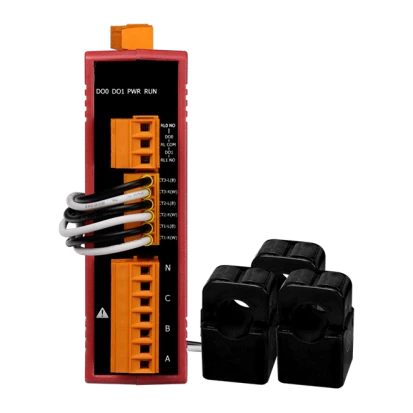

PM-3133-005P
ICP DAS
SKU: 11203800
Modbus RTU, 3-phase Smart Power Meter (100 A) includes 5A CT (Inside diameter 10 mm; wire lead 4 m) x 3, 12-48VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Supported Protocols
Industrial Protocols
Modbus RTU slave
System Power Input
Input Voltage DC
12..48 V
Interfaces
COM Total
1
RS-485
1
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Voltage measurement channels
1 (three-phase)
Input Current
5A
Current measurement channels
3
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Digital Output
Total channels of digital output
2
Type
Electromagnitic relay
Operating Conditions
Operating Temperature
-10..70 °C
Dimensions and weight
Width
33 mm
Depth
100 mm
Height
127 mm
Dimensions
Net Weight
0.4 kg
Gross Weight
0.5 kg
