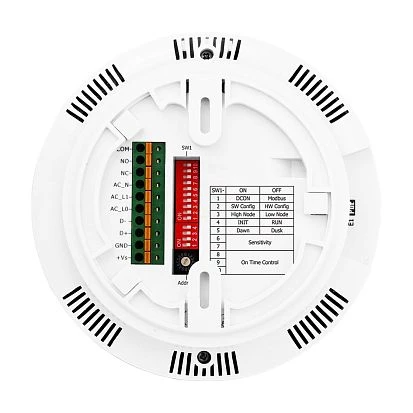

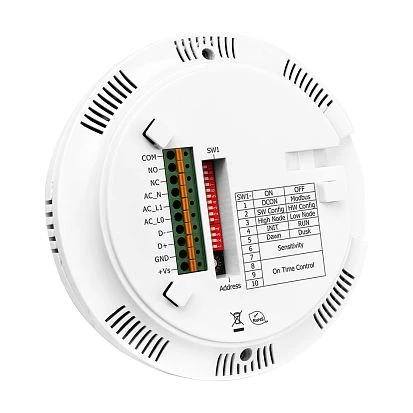

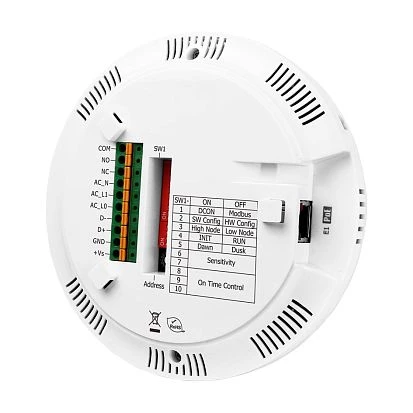

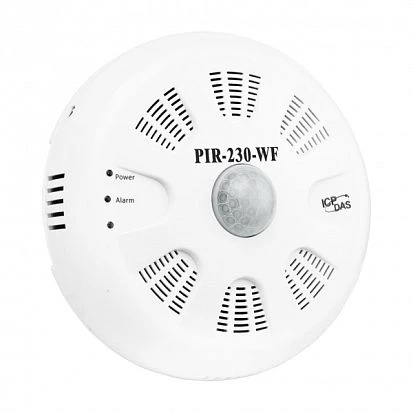

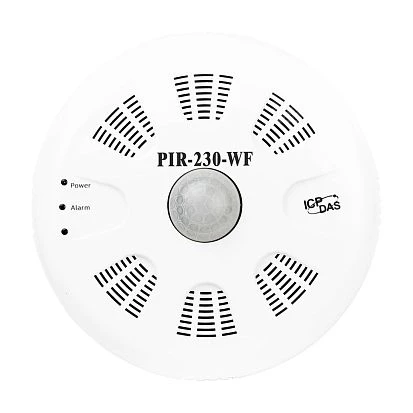

PIR-230-WF

PIR-230-WF

SKU: 08411900

PIR Motion Sensor, Temperature and Humidity Sensor Module (Ethernet), 2xDI, 1xRelay Output 10A@250VAC, 24...48VDC-in, PoE, Wi-Fi IEEE 802.11 b/g/n

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Wall, Ceiling mounting

Protection Level of Chassis

IP20

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus RTU slave, DCON slave

Ethernet

10/100 Mbit/s

1

System Power Input

Power over Ethernet (PoE)

IEEE 802.3af

Input Voltage DC

18..48 V

Interfaces

RS-485

1

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Sensors

Measuring Range

-40...+120 °C

Resolution

0.01 °C

Accuracy (+/-)

0.5 °C

Measuring Range

0…100%

Resolution

0 %

Accuracy (+/-)

0 %

Detection range

4 m

Dimensions and weight

Width

150 mm

Height

53 mm

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4

Dimensions

Gross Weight

0.5 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Wall, Ceiling mounting

Protection Level of Chassis

IP20

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus RTU slave, DCON slave

Ethernet

10/100 Mbit/s

1

System Power Input

Power over Ethernet (PoE)

IEEE 802.3af

Input Voltage DC

18..48 V

Interfaces

RS-485

1

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Sensors

Measuring Range

-40...+120 °C

Resolution

0.01 °C

Accuracy (+/-)

0.5 °C

Measuring Range

0…100%

Resolution

0 %

Accuracy (+/-)

0 %

Detection range

4 m

Dimensions and weight

Width

150 mm

Height

53 mm

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4

Dimensions

Gross Weight

0.5 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Wall, Ceiling mounting

Protection Level of Chassis

IP20

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus RTU slave, DCON slave

Ethernet

10/100 Mbit/s

1

System Power Input

Power over Ethernet (PoE)

IEEE 802.3af

Input Voltage DC

18..48 V

Interfaces

RS-485

1

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Sensors

Measuring Range

-40...+120 °C

Resolution

0.01 °C

Accuracy (+/-)

0.5 °C

Measuring Range

0…100%

Resolution

0 %

Accuracy (+/-)

0 %

Detection range

4 m

Dimensions and weight

Width

150 mm

Height

53 mm

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4

Dimensions

Gross Weight

0.5 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Wall, Ceiling mounting

Protection Level of Chassis

IP20

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus RTU slave, DCON slave

Ethernet

10/100 Mbit/s

1

System Power Input

Power over Ethernet (PoE)

IEEE 802.3af

Input Voltage DC

18..48 V

Interfaces

RS-485

1

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Sensors

Measuring Range

-40...+120 °C

Resolution

0.01 °C

Accuracy (+/-)

0.5 °C

Measuring Range

0…100%

Resolution

0 %

Accuracy (+/-)

0 %

Detection range

4 m

Dimensions and weight

Width

150 mm

Height

53 mm

Standards and Certifications

EMS

IEC 61000-4-2, IEC 61000-4-4

Dimensions

Gross Weight

0.5 kg

Documentation

Datasheet PIR-230(1)-E, BLE, WF User Manual PIR-230(1)-E, BLE, WF

Documentation

Datasheet PIR-230(1)-E, BLE, WF User Manual PIR-230(1)-E, BLE, WF

Documentation

Datasheet PIR-230(1)-E, BLE, WF User Manual PIR-230(1)-E, BLE, WF

Documentation

Datasheet PIR-230(1)-E, BLE, WF User Manual PIR-230(1)-E, BLE, WF

Get a Quote
