iSN-301V

iSN-301V

ICP DAS
SKU: 10028300

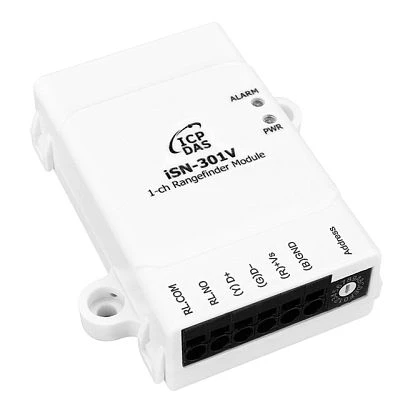

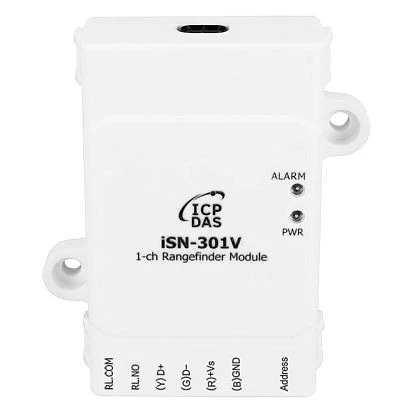

1-ch Rangefinder Module (Vertical), 1xRS-485, 10-30VDC, -25C to +75C operating temperature
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Supported Protocols
Industrial Protocols

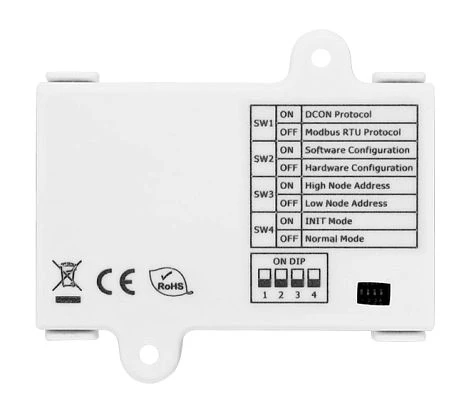

Modbus RTU, DCON
System Power Input
Input Voltage DC
10..30 V
Interfaces
RS-485
1
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions and weight
Width
70 mm
Depth
24 mm
Height
78 mm
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg

Documentation
Datasheet iSN-301H/V/DIN

Get a Quote

ICP DAS
SKU: 10028300
iSN-301V
iSN-301V
iSN-301V
