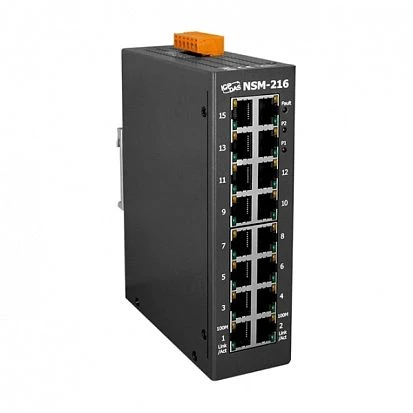

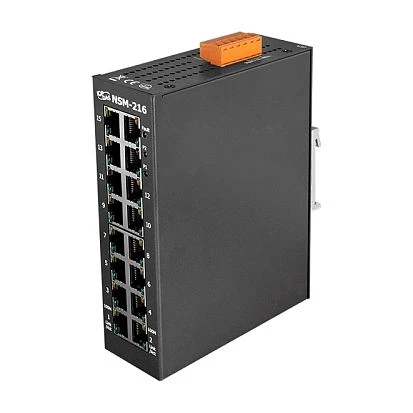

NSM-216
ICP DAS
SKU: 06137000
Industrial Smart Ethernet Switch with 16 10/100 Base-T Ports, metal case
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
16xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
16000
Packet Buffer Size
4 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@30V DC

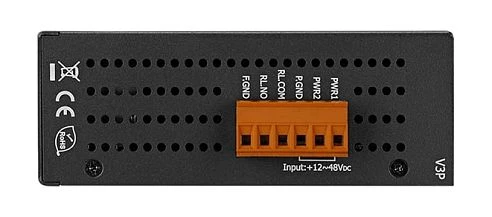

System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
44 mm
Depth
119 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.71 kg
Gross Weight
0.88 kg
