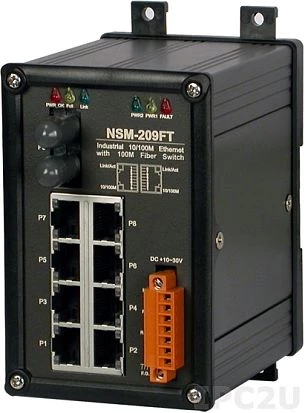

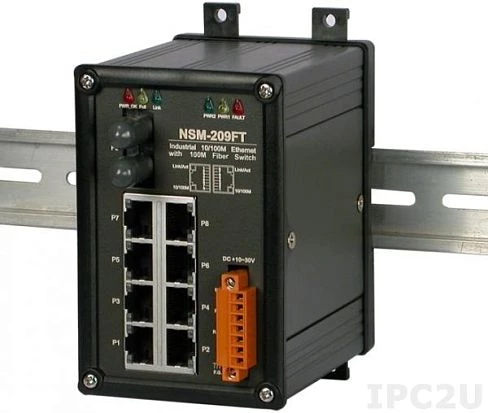

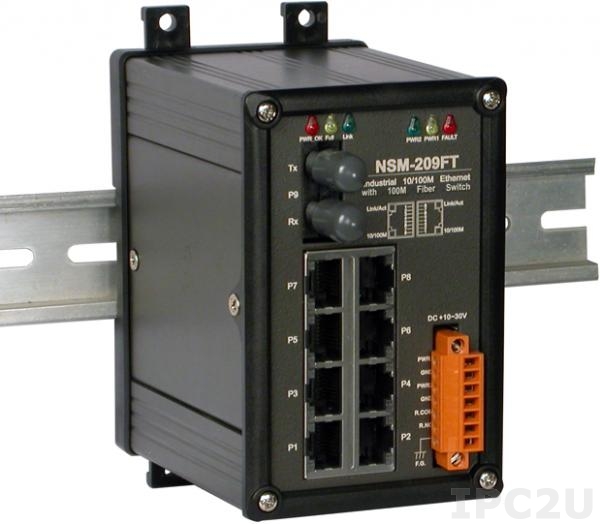

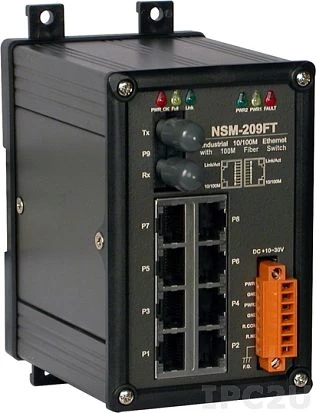

NSM-209FT
ICP DAS
SKU: 05723300
Industrial Smart Ethernet Switch with 8 10/100 Base-T Ports and 1 Multi-mode 100 Base-FX Port, IP20
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
9
10/100 Mbit/s
9
Type 10/100 Mbit/s
1xST, 8xRJ-45
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP20
Dimensions and weight
Width
73 mm
Depth
105 mm
Height
132 mm
Operating Conditions
Operating Temperature
-10..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
