NS-208
ICP DAS
SKU: 03187000

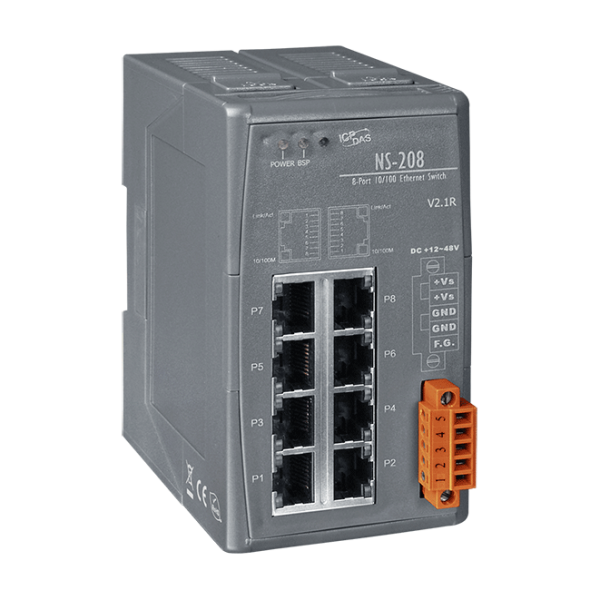

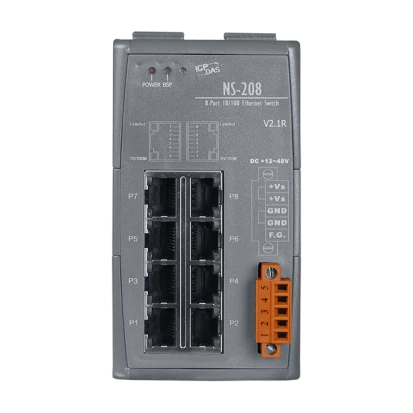

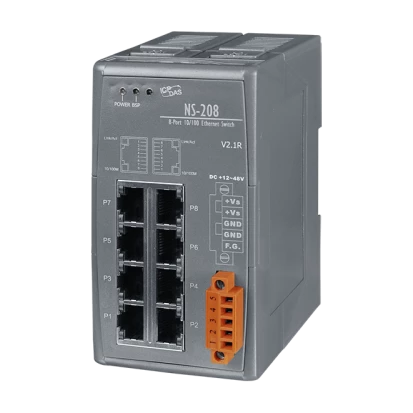

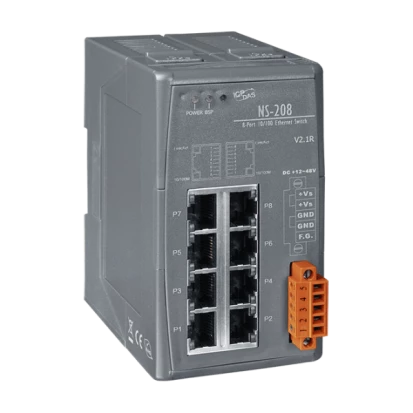

Industrial Smart Ethernet Switch with 8 10/100 Base-T Ports, Wide Temperature Range
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
64 mm
Depth
98 mm
Height
118 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.4 kg
