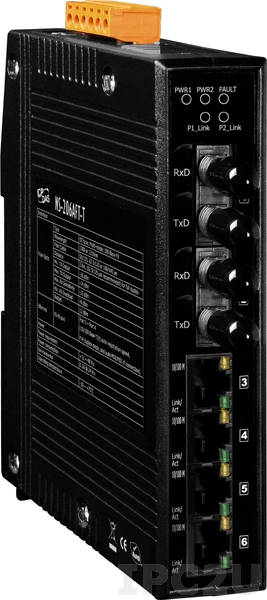

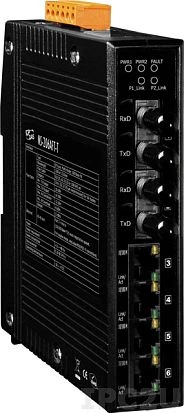

NS-206AFT-T
ICP DAS
SKU: 06135800
Industrial Smart Ethernet Switch with 4 10/100 Base-T Ports and 2 multi-mode 100 Base-FX Ports, 2 km, ST connector
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
2xST, 4xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
31 mm
Depth
127 mm
Height
157 mm
Operating Conditions
Operating Temperature
-30..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.25 kg
Gross Weight
0.33 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
2xST, 4xRJ-45
