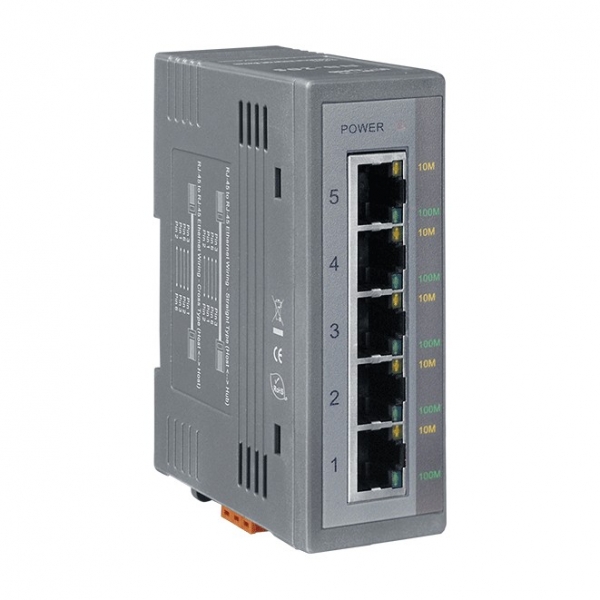

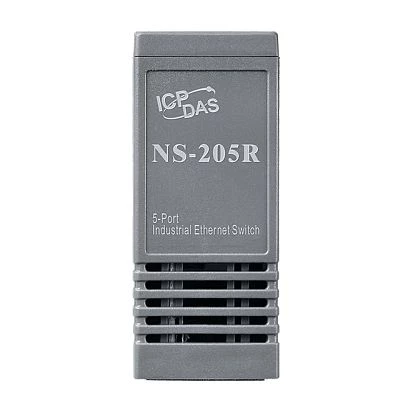

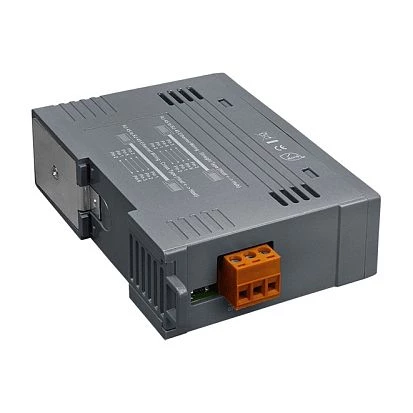

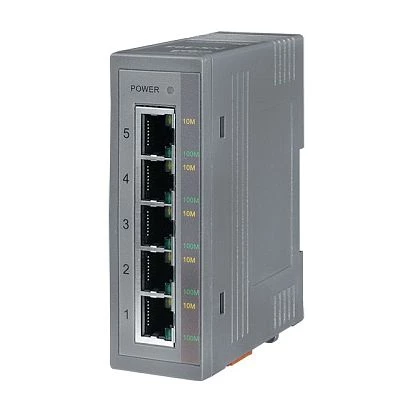

NS-205R
ICP DAS
SKU: 05841000
Industrial Smart Ethernet Switch with 5 10/100 Base-T Ports
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Connectors
Connectors
5xRJ45 Ethernet, DC input (terminal block)
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
33 mm
Depth
78 mm
Height
107 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
